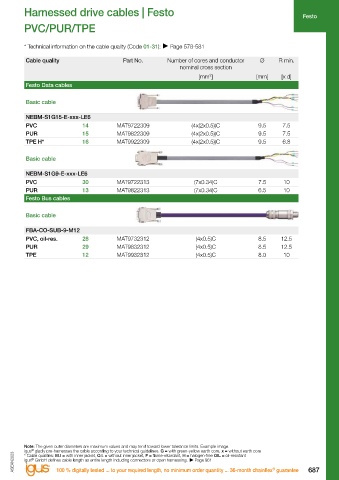

Harnessed drive cables | Festo Harnessed drive cables | Festo
Festo Festo
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Festo Data cables Festo Data cables

Basic cable Basic cable

KDI-MC-M8-SUB-9-xxx NEBM-S1G15-E-xxx-LE6
PVC 30 MAT9722311 (3x0.25)C 5.0 10 PVC 14 MAT9722309 (4x(2x0.5))C 9.5 7.5
PUR 13 MAT9822311 (3x0.25)C 5.5 10 PUR 15 MAT9822309 (4x(2x0.5))C 9.5 7.5
TPE H* 16 MAT9922309 (4x(2x0.5))C 9.5 6.8
Basic cable
Basic cable
KES-MC-1-SUB-9-xxx
PVC 30 MAT9722310 (14x0.14)C 7.0 10 NEBM-S1G9-E-xxx-LE6
PUR 13 MAT9822310 (14x0.14)C 7.5 10 PVC 30 MAT9722313 (7x0.34)C 7.5 10
PUR 13 MAT9822313 (7x0.34)C 6.5 10
Basic cable Festo Bus cables

NEBM-M12G8-E-xxx-N-S1G15 Basic cable
PVC 14 MAT9722305 (4x(2x0.25))C 7.5 7.5
PUR 15 MAT9822305 (4x(2x0.25))C 7.5 7.5 FBA-CO-SUB-9-M12
TPE H* 16 MAT9922305 (4x(2x0.25))C 8.5 6.8 PVC, oil-res. 28 MAT9732312 (4x0.5)C 8.5 12.5
PUR 29 MAT9832312 (4x0.5)C 8.5 12.5
Basic cable TPE 12 MAT9932312 (4x0.5)C 8.0 10

NEBM-M12G8-E-xxx-S1G9
PVC 14 MAT9722306 (4x(2x0.25))C 7.5 7.5
PUR 15 MAT9822306 (4x(2x0.25))C 7.5 7.5
TPE H* 16 MAT9922306 (4x(2x0.25))C 8.5 6.8

Basic cable

NEBM-M12W8-E-xxx-N-S1G15
PVC 14 MAT9722307 (4x(2x0.25))C 7.5 7.5
PUR 15 MAT9822307 (4x(2x0.25))C 7.5 7.5
TPE H* 16 MAT9922307 (4x(2x0.25))C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
