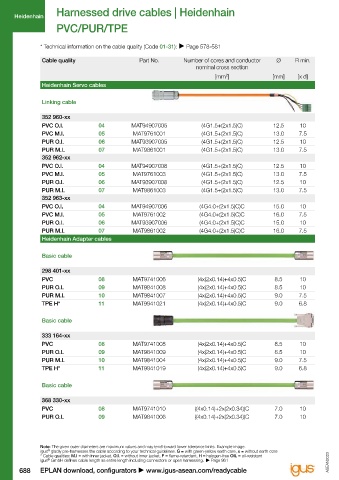

Page 694 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Heidenhain Harnessed drive cables | Heidenhain
Heidenhain Heidenhain
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Heidenhain Servo cables Heidenhain Adapter cables

Linking cable Basic cable

352 960-xx 524 599-xx
PVC O.I. 04 MAT94907005 (4G1.5+(2x1.5)C) 12.5 10 PVC 08 MAT9741007 (4x(2x0.14)+4x0.5)C 8.5 10
PVC M.I. 05 MAT9761001 (4G1.5+(2x1.5)C) 13.0 7.5 PUR O.I. 09 MAT9841003 (4x(2x0.14)+4x0.5)C 8.5 10
PUR O.I. 06 MAT93907005 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 10 MAT9841002 (4x(2x0.14)+4x0.5)C 9.0 7.5
PUR M.I. 07 MAT9861001 (4G1.5+(2x1.5)C) 13.0 7.5 TPE H* 11 MAT9941018 (4x(2x0.14)+4x0.5)C 9.0 6.8
352 962-xx
PVC O.I. 04 MAT94907008 (4G1.5+(2x1.5)C) 12.5 10 Basic cable
PVC M.I. 05 MAT9761003 (4G1.5+(2x1.5)C) 13.0 7.5
PUR O.I. 06 MAT93907008 (4G1.5+(2x1.5)C) 12.5 10 534 855-xx
PUR M.I. 07 MAT9861003 (4G1.5+(2x1.5)C) 13.0 7.5 PVC 08 MAT9741009 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 10
352 963-xx PUR M.I. 10 MAT9841005 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 7.5
PVC O.I. 04 MAT94907006 (4G4.0+(2x1.5)C)C 15.0 10 TPE H* 11 MAT9941020 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 6.8
PVC M.I. 05 MAT9761002 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT93907006 (4G4.0+(2x1.5)C)C 15.0 10 Basic cable
PUR M.I. 07 MAT9861002 (4G4.0+(2x1.5)C)C 16.0 7.5
Heidenhain Adapter cables 605 424-xx
PVC 08 MAT9741000 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.0 10
Basic cable PUR O.I. 09 MAT9841001 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.0 10
PUR M.I. 10 MAT9841000 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 11.0 7.5
298 401-xx TPE H* 11 MAT9941000 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.5 6.8
PVC 08 MAT9741006 (4x(2x0.14)+4x0.5)C 8.5 10
PUR O.I. 09 MAT9841008 (4x(2x0.14)+4x0.5)C 8.5 10 Linking cable
PUR M.I. 10 MAT9841007 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT9941021 (4x(2x0.14)+4x0.5)C 9.0 6.8 289 440-xx
PVC 08 MAT9741002 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 10
Basic cable PUR M.I. 10 MAT94901005 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 7.5
TPE H* 11 MAT93901005 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 6.8
333 164-xx 298 399-xx
PVC 08 MAT9741008 (4x(2x0.14)+4x0.5)C 8.5 10 PUR O.I. 09 MAT9941011 (4x(2x0.14)+4x0.5)C 8.5 10
PUR O.I. 09 MAT9841009 (4x(2x0.14)+4x0.5)C 8.5 10 PUR M.I. 10 MAT94905001 (4x(2x0.14)+4x0.5)C 9.0 7.5
PUR M.I. 10 MAT9841004 (4x(2x0.14)+4x0.5)C 9.0 7.5 TPE H* 11 MAT93905001 (4x(2x0.14)+4x0.5)C 9.0 6.8
TPE H* 11 MAT9941019 (4x(2x0.14)+4x0.5)C 9.0 6.8 298 400-xx
PUR O.I. 09 MAT9941012 (4x(2x0.14)+4x0.5)C 8.5 10
Basic cable PUR M.I. 10 MAT94906002 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT93906002 (4x(2x0.14)+4x0.5)C 9.0 6.8
368 330-xx 309 783-xx
PVC 08 MAT9741010 ((4x0.14)+2x(2x0.34))C 7.0 10 PUR O.I. 09 MAT9941008 (4x(2x0.14)+4x0.5)C 8.5 10
PUR O.I. 09 MAT9841006 ((4x0.14)+2x(2x0.34))C 7.0 10 PUR M.I. 10 MAT94903003 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT93903003 (4x(2x0.14)+4x0.5)C 9.0 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
