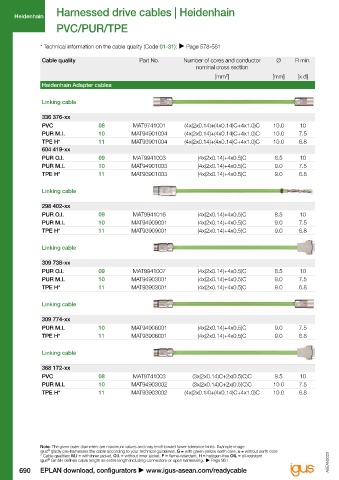

Page 696 - ASEAN Chainflex Catalogue 2023
P. 696
Harnessed drive cables | Heidenhain Harnessed drive cables | Heidenhain
Heidenhain Heidenhain
PVC/PUR/TPE PVC/PUR/TPE
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Heidenhain Adapter cables Heidenhain Adapter cables
Linking cable Linking cable
336 376-xx 309 777-xx
PVC 08 MAT9741001 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 10 PUR O.I. 09 MAT9941013 (4x(2x0.14)+4x0.5)C 8.5 10
PUR M.I. 10 MAT94901004 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 7.5 PUR M.I. 10 MAT94907001 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT93901004 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 6.8 TPE H* 11 MAT93907001 (4x(2x0.14)+4x0.5)C 9.0 6.8
604 419-xx 309 778-xx
PUR O.I. 09 MAT9941003 (4x(2x0.14)+4x0.5)C 8.5 10 PUR O.I. 09 MAT9941014 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR M.I. 10 MAT94901003 (4x(2x0.14)+4x0.5)C 9.0 7.5 PUR M.I. 10 MAT94907002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93901003 (4x(2x0.14)+4x0.5)C 9.0 6.8 TPE H* 11 MAT93907002 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8
533 627-xx
Linking cable PUR O.I. 09 MAT9941004 (4x(2x0.14)+4x0.5)C 8.5 10
PUR M.I. 10 MAT94901006 (4x(2x0.14)+4x0.5)C 9.0 7.5
298 402-xx TPE H* 11 MAT93901006 (4x(2x0.14)+4x0.5)C 9.0 6.8
PUR O.I. 09 MAT9941016 (4x(2x0.14)+4x0.5)C 8.5 10
PUR M.I. 10 MAT94909001 (4x(2x0.14)+4x0.5)C 9.0 7.5 Linking cable
TPE H* 11 MAT93909001 (4x(2x0.14)+4x0.5)C 9.0 6.8
310 193-xx
Linking cable PUR M.I. 10 MAT94907003 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
TPE H* 11 MAT93907003 (3x(2x0.14)C+(2x0.5)C)C 10.0 6.8
309 738-xx
PUR O.I. 09 MAT9941007 (4x(2x0.14)+4x0.5)C 8.5 10 Linking cable
PUR M.I. 10 MAT94903001 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT93903001 (4x(2x0.14)+4x0.5)C 9.0 6.8 310 197-xx
PUR M.I. 10 MAT94902001 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
Linking cable TPE H* 11 MAT93902001 (3x(2x0.14)C+(2x0.5)C)C 10.0 6.8
310 199-xx
309 774-xx PUR O.I. 09 MAT9941006 (4x(2x0.14)+4x0.5)C 8.5 10
PUR M.I. 10 MAT94906001 (4x(2x0.14)+4x0.5)C 9.0 7.5 PUR M.I. 10 MAT94902003 (4x(2x0.14)+4x0.5)C 9.0 7.5
TPE H* 11 MAT93906001 (4x(2x0.14)+4x0.5)C 9.0 6.8 TPE H* 11 MAT93902003 (4x(2x0.14)+4x0.5)C 9.0 6.8
Linking cable Linking cable
368 172-xx 323 897-xx
PVC 08 MAT9741003 (3x(2x0.14)C+2x(0.5)C)C 9.5 10 PUR O.I. 09 MAT9941015 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR M.I. 10 MAT94903002 (3x(2x0.14)C+2x(0.5)C)C 10.0 7.5 PUR M.I. 10 MAT94907004 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
TPE H* 11 MAT93903002 (4x(2x0.14)+(4x0.14)C+4x1.0)C 10.0 6.8 TPE H* 11 MAT93907004 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
690 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 691
®
