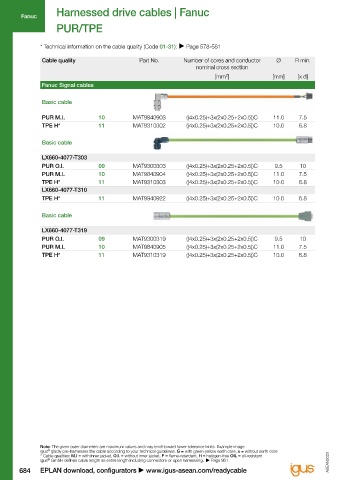

Page 690 - ASEAN Chainflex Catalogue 2023
P. 690
Harnessed drive cables | Fanuc Harnessed drive cables | Festo
Fanuc Festo
PUR/TPE PVC/PUR/TPE
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Fanuc Signal cables Festo Servo cables
Basic cable Basic cable
PUR M.I. 10 MAT9840903 ((4x0.25)+3x(2x0.25+2x0.5))C 11.0 7.5 NEBM-M16G8-E-xxx-Q7-LE8
TPE H* 11 MAT9310302 ((4x0.25)+3x(2x0.25+2x0.5))C 10.0 6.8 PUR O.I. 06 MAT9852303 (4G0.75+2x(2x0.34)C)C 12.0 10
Basic cable Basic cable
LX660-4077-T303 NEBM-M23G6-E-xxx-N-LE7
PUR O.I. 09 MAT9300303 ((4x0.25)+3x(2x0.25+2x0.5))C 9.5 10 PVC O.I. 04 MAT9752301 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 10 MAT9840904 ((4x0.25)+3x(2x0.25+2x0.5))C 11.0 7.5 PVC M.I. 05 MAT9752317 (4G1.5+2x(2x0.75)C)C 14.5 7.5
TPE H* 11 MAT9310303 ((4x0.25)+3x(2x0.25+2x0.5))C 10.0 6.8 PUR O.I. 06 MAT9852301 (4G1.5+2x(2x0.75)C)C 13.5 10
LX660-4077-T310 PUR M.I. 07 MAT9852317 (4G1.5+2x(2x0.75)C)C 14.5 7.5
TPE H* 11 MAT9940922 ((4x0.25)+3x(2x0.25+2x0.5))C 10.0 6.8 NEBM-M23G8-E-xxx-N-LE8
PVC O.I. 04 MAT9752300 (4G2.5+2x(2x1.5)C)C 16.0 10
Basic cable PVC M.I. 05 MAT9752316 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9852300 (4G2.5+(4x0.5)C)C 13.5 10
LX660-4077-T319 PUR M.I. 07 MAT9852316 (4G2.5+(4x0.5)C)C 14.0 7.5
PUR O.I. 09 MAT9300319 ((4x0.25)+3x(2x0.25+2x0.5))C 9.5 10
PUR M.I. 10 MAT9840905 ((4x0.25)+3x(2x0.25+2x0.5))C 11.0 7.5 Basic cable
TPE H* 11 MAT9310319 ((4x0.25)+3x(2x0.25+2x0.5))C 10.0 6.8
NEBM-M40G8-E-xxx-N-LE7
PVC O.I. 04 MAT9752302 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT9752318 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT9852302 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT9852318 (4G2.5+2x(2x1.5)C)C 16.0 7.5
Festo Control cables
Basic cable
KPWR-MC-1-SUB-9HC-xxx
PVC M.I. 18 MAT9712320 (3G1.5)C 9.0 7.5
PUR M.I. 22 MAT9812320 (3G1.5)C 9.5 6.8
Festo Encoder cables
Basic cable
NEBM-M23G12-E-xxx-N-S1G9
PVC 08 MAT9742308 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR O.I. 09 MAT9842308 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR M.I. 10 MAT9842324 (3x(2x0.14)C+2x(0.5)C)C 10.0 7.5
TPE H* 11 MAT9942308 (3x(2x0.14)C+2x(0.5)C)C 10.0 6.8
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
