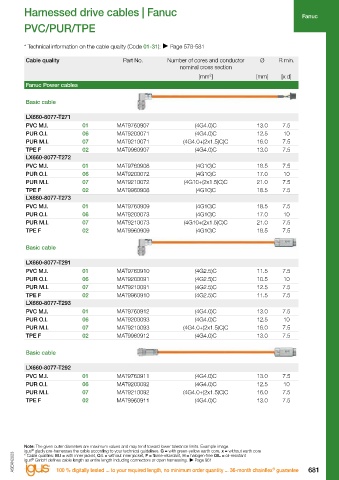

Harnessed drive cables | Fanuc Harnessed drive cables | Fanuc
Fanuc Fanuc
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Fanuc Power cables Fanuc Power cables

Basic cable Basic cable

LX660-8077-T261 LX660-8077-T271
PVC M.I. 01 MAT9760901 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9760907 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9200061 (4G1.5)C 9.0 10 PUR O.I. 06 MAT9200071 (4G4.0)C 12.5 10
PUR M.I. 07 MAT9210061 (4G1.5)C 11.0 7.5 PUR M.I. 07 MAT9210071 (4G4.0+(2x1.5)C)C 16.0 7.5
TPE F 02 MAT9960901 (4G1.5)C 10.0 7.5 TPE F 02 MAT9960907 (4G4.0)C 13.0 7.5
LX660-8077-T272
Basic cable PVC M.I. 01 MAT9760908 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9200072 (4G10)C 17.0 10
LX660-8077-T264 PUR M.I. 07 MAT9210072 (4G10+(2x1.5)C)C 21.0 7.5
PVC M.I. 01 MAT9760902 (4G2.5)C 11.5 7.5 TPE F 02 MAT9960908 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9200064 (4G2.5)C 10.5 10 LX660-8077-T273
PUR M.I. 07 MAT9210064 (4G2.5)C 12.5 7.5 PVC M.I. 01 MAT9760909 (4G10)C 18.5 7.5
TPE F 02 MAT9960902 (4G2.5)C 11.5 7.5 PUR O.I. 06 MAT9200073 (4G10)C 17.0 10
LX660-8077-T266 PUR M.I. 07 MAT9210073 (4G10+(2x1.5)C)C 21.0 7.5
PVC M.I. 01 MAT9760904 (4G2.5)C 11.5 7.5 TPE F 02 MAT9960909 (4G10)C 18.5 7.5
PUR O.I. 06 MAT9200066 (4G2.5)C 10.5 10
PUR M.I. 07 MAT9210066 (4G2.5)C 12.5 7.5 Basic cable
TPE F 02 MAT9960904 (4G2.5)C 11.5 7.5
LX660-8077-T291
Basic cable PVC M.I. 01 MAT9760910 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9200091 (4G2.5)C 10.5 10
LX660-8077-T265 PUR M.I. 07 MAT9210091 (4G2.5)C 12.5 7.5
PVC M.I. 01 MAT9760903 (4G2.5)C 11.5 7.5 TPE F 02 MAT9960910 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9200065 (4G2.5)C 10.5 10 LX660-8077-T293
PUR M.I. 07 MAT9210065 (4G2.5)C 12.5 7.5 PVC M.I. 01 MAT9760912 (4G4.0)C 13.0 7.5
TPE F 02 MAT9960903 (4G2.5)C 11.5 7.5 PUR O.I. 06 MAT9200093 (4G4.0)C 12.5 10
LX660-8077-T267 PUR M.I. 07 MAT9210093 (4G4.0+(2x1.5)C)C 16.0 7.5
PVC M.I. 01 MAT9760905 (4G2.5)C 11.5 7.5 TPE F 02 MAT9960912 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9200067 (4G2.5)C 10.5 10
PUR M.I. 07 MAT9210067 (4G2.5)C 12.5 7.5 Basic cable
TPE F 02 MAT9960905 (4G2.5)C 11.5 7.5
LX660-8077-T292
Basic cable PVC M.I. 01 MAT9760911 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9200092 (4G4.0)C 12.5 10
LX660-8077-T270 PUR M.I. 07 MAT9210092 (4G4.0+(2x1.5)C)C 16.0 7.5
PVC M.I. 01 MAT9760906 (4G4.0)C 13.0 7.5 TPE F 02 MAT9960911 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9200070 (4G4.0)C 12.5 10
PUR M.I. 07 MAT9210070 (4G4.0+(2x1.5)C)C 16.0 7.5
TPE F 02 MAT9960906 (4G4.0)C 13.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
680 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 681
®
