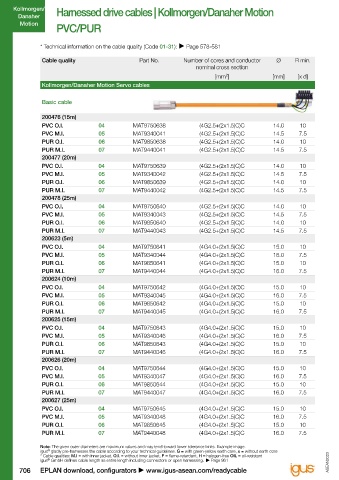

Page 712 - ASEAN Chainflex Catalogue 2023

Kollmorgen/ Harnessed drive cables | Kollmorgen/Danaher Motion Harnessed drive cables | Kollmorgen/Danaher Motion Kollmorgen/
Danaher Danaher
Motion Motion
PVC/PUR PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Kollmorgen/Danaher Motion Servo cables Kollmorgen/Danaher Motion Signal cables

Basic cable Basic cable

200476 (15m) 84972 (5m)
PVC O.I. 04 MAT9750638 (4G2.5+(2x1.5)C)C 14.0 10 PVC 14 MAT9320001 (4x(2x0.25))C 7.5 7.5
PVC M.I. 05 MAT9340041 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR 15 MAT9840601 (4x(2x0.25))C 7.5 7.5
PUR O.I. 06 MAT9850638 (4G2.5+(2x1.5)C)C 14.0 10 TPE H* 16 MAT9330001 (4x(2x0.25))C 8.5 6.8
PUR M.I. 07 MAT9440041 (4G2.5+(2x1.5)C)C 14.5 7.5 84973 (10m)
200477 (20m) PVC 14 MAT9320009 (4x(2x0.25))C 7.5 7.5
PVC O.I. 04 MAT9750639 (4G2.5+(2x1.5)C)C 14.0 10 PUR 15 MAT9840602 (4x(2x0.25))C 7.5 7.5
PVC M.I. 05 MAT9340042 (4G2.5+(2x1.5)C)C 14.5 7.5 TPE H* 16 MAT9330009 (4x(2x0.25))C 8.5 6.8
PUR O.I. 06 MAT9850639 (4G2.5+(2x1.5)C)C 14.0 10 84974 (15m)
PUR M.I. 07 MAT9440042 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC 14 MAT9320010 (4x(2x0.25))C 7.5 7.5
200478 (25m) PUR 15 MAT9840603 (4x(2x0.25))C 7.5 7.5
PVC O.I. 04 MAT9750640 (4G2.5+(2x1.5)C)C 14.0 10 TPE H* 16 MAT9330010 (4x(2x0.25))C 8.5 6.8
PVC M.I. 05 MAT9340043 (4G2.5+(2x1.5)C)C 14.5 7.5 84975 (20m)
PUR O.I. 06 MAT9850640 (4G2.5+(2x1.5)C)C 14.0 10 PVC 14 MAT9320011 (4x(2x0.25))C 7.5 7.5
PUR M.I. 07 MAT9440043 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR 15 MAT9840604 (4x(2x0.25))C 7.5 7.5
200623 (5m) TPE H* 16 MAT9330011 (4x(2x0.25))C 8.5 6.8
PVC O.I. 04 MAT9750641 (4G4.0+(2x1.5)C)C 15.0 10 87655 (25m)
PVC M.I. 05 MAT9340044 (4G4.0+(2x1.5)C)C 16.0 7.5 PVC 14 MAT9320012 (4x(2x0.25))C 7.5 7.5
PUR O.I. 06 MAT9850641 (4G4.0+(2x1.5)C)C 15.0 10 PUR 15 MAT9840605 (4x(2x0.25))C 7.5 7.5
PUR M.I. 07 MAT9440044 (4G4.0+(2x1.5)C)C 16.0 7.5 TPE H* 16 MAT9330012 (4x(2x0.25))C 8.5 6.8
200624 (10m) 90287 (5m)
PVC O.I. 04 MAT9750642 (4G4.0+(2x1.5)C)C 15.0 10 PVC 14 MAT9320002 (8x(2x0.25))C 10.5 7.5
PVC M.I. 05 MAT9340045 (4G4.0+(2x1.5)C)C 16.0 7.5 TPE H* 16 MAT9330002 (8x(2x0.34))C 13.0 6.8
PUR O.I. 06 MAT9850642 (4G4.0+(2x1.5)C)C 15.0 10 91019 (10m)
PUR M.I. 07 MAT9440045 (4G4.0+(2x1.5)C)C 16.0 7.5 PVC 14 MAT9320013 (8x(2x0.25))C 10.5 7.5
200625 (15m) TPE H* 16 MAT9330013 (8x(2x0.34))C 13.0 6.8
PVC O.I. 04 MAT9750643 (4G4.0+(2x1.5)C)C 15.0 10 91807 (20m)
PVC M.I. 05 MAT9340046 (4G4.0+(2x1.5)C)C 16.0 7.5 PVC 14 MAT9320015 (8x(2x0.25))C 10.5 7.5
PUR O.I. 06 MAT9850643 (4G4.0+(2x1.5)C)C 15.0 10 TPE H* 16 MAT9330015 (8x(2x0.34))C 13.0 6.8
PUR M.I. 07 MAT9440046 (4G4.0+(2x1.5)C)C 16.0 7.5 91811 (15m)
200626 (20m) PVC 14 MAT9320014 (8x(2x0.25))C 10.5 7.5
PVC O.I. 04 MAT9750644 (4G4.0+(2x1.5)C)C 15.0 10 TPE H* 16 MAT9330014 (8x(2x0.34))C 13.0 6.8
PVC M.I. 05 MAT9340047 (4G4.0+(2x1.5)C)C 16.0 7.5 92205 (25m)
PUR O.I. 06 MAT9850644 (4G4.0+(2x1.5)C)C 15.0 10 PVC 14 MAT9320016 (8x(2x0.25))C 10.5 7.5
PUR M.I. 07 MAT9440047 (4G4.0+(2x1.5)C)C 16.0 7.5 TPE H* 16 MAT9330016 (8x(2x0.34))C 13.0 6.8
200627 (25m)
PVC O.I. 04 MAT9750645 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT9340048 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT9850645 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT9440048 (4G4.0+(2x1.5)C)C 16.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
706 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 707
®
