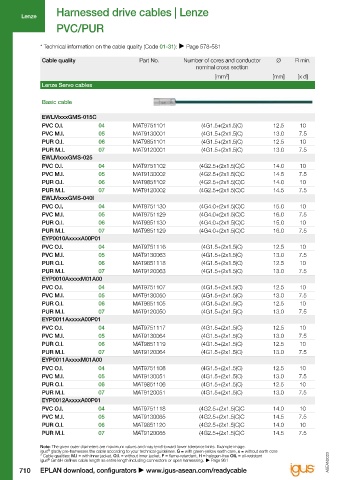

Page 716 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Lenze Harnessed drive cables | Lenze
Lenze Lenze
PVC/PUR PVC/PUR

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Lenze Servo cables Lenze Servo cables
EYP0012AxxxxA00P02
Basic cable PVC O.I. 04 MAT9751113 (4G2.5+(2x1.5)C)C 14.0 10
PVC M.I. 05 MAT9130058 (4G2.5+(2x1.5)C)C 14.5 7.5
EWLMxxxGMS-015C PUR O.I. 06 MAT9851113 (4G2.5+(2x1.5)C)C 14.0 10
PVC O.I. 04 MAT9751101 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 07 MAT9120058 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC M.I. 05 MAT9130001 (4G1.5+(2x1.5)C) 13.0 7.5 EYP0012AxxxxM01A00
PUR O.I. 06 MAT9851101 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751109 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT9120001 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9130052 (4G2.5+(2x1.5)C)C 14.5 7.5
EWLMxxxGMS-025 PUR O.I. 06 MAT9851107 (4G2.5+(2x1.5)C)C 14.0 10
PVC O.I. 04 MAT9751102 (4G2.5+(2x1.5)C)C 14.0 10 PUR M.I. 07 MAT9120052 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC M.I. 05 MAT9130002 (4G2.5+(2x1.5)C)C 14.5 7.5 EYP0012AxxxxM02A00
PUR O.I. 06 MAT9851102 (4G2.5+(2x1.5)C)C 14.0 10 PVC O.I. 04 MAT9751110 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT9120002 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9130053 (4G2.5+(2x1.5)C)C 14.5 7.5
EWLMxxxGMS-040I PUR O.I. 06 MAT9851108 (4G2.5+(2x1.5)C)C 14.0 10
PVC O.I. 04 MAT9751130 (4G4.0+(2x1.5)C)C 15.0 10 PUR M.I. 07 MAT9120053 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC M.I. 05 MAT9751129 (4G4.0+(2x1.5)C)C 16.0 7.5 EYP0013AxxxxA00P02
PUR O.I. 06 MAT9851130 (4G4.0+(2x1.5)C)C 15.0 10 PVC O.I. 04 MAT9751114 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT9851129 (4G4.0+(2x1.5)C)C 16.0 7.5 PVC M.I. 05 MAT9130059 (4G4.0+(2x1.5)C)C 16.0 7.5
EYP0010AxxxxA00P01 PUR O.I. 06 MAT9851114 (4G4.0+(2x1.5)C)C 15.0 10
PVC O.I. 04 MAT9751116 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 07 MAT9120059 (4G4.0+(2x1.5)C)C 16.0 7.5
PVC M.I. 05 MAT9130063 (4G1.5+(2x1.5)C) 13.0 7.5 EYP0013AxxxxM02A00
PUR O.I. 06 MAT9851118 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751111 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT9120063 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9130054 (4G4.0+(2x1.5)C)C 16.0 7.5
EYP0010AxxxxM01A00 PUR O.I. 06 MAT9851109 (4G4.0+(2x1.5)C)C 15.0 10
PVC O.I. 04 MAT9751107 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 07 MAT9120054 (4G4.0+(2x1.5)C)C 16.0 7.5
PVC M.I. 05 MAT9130050 (4G1.5+(2x1.5)C) 13.0 7.5 EYP0014AxxxxA00P03
PUR O.I. 06 MAT9851105 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751115 (4G6.0+(2x1.5)C)C 16.5 10
PUR M.I. 07 MAT9120050 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9130060 (4G6.0+(2x1.5)C)C 18.0 7.5
EYP0011AxxxxA00P01 PUR O.I. 06 MAT9851115 (4G6.0+(2x1.5)C)C 16.5 10
PVC O.I. 04 MAT9751117 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 07 MAT9120060 (4G6.0+(2x1.5)C)C 17.5 7.5
PVC M.I. 05 MAT9130064 (4G1.5+(2x1.5)C) 13.0 7.5 EYP0014AxxxxM03A00
PUR O.I. 06 MAT9851119 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751112 (4G6.0+(2x1.5)C)C 16.5 10
PUR M.I. 07 MAT9120064 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9130055 (4G6.0+(2x1.5)C)C 18.0 7.5
EYP0011AxxxxM01A00 PUR O.I. 06 MAT9851110 (4G6.0+(2x1.5)C)C 18.0 7.5
PVC O.I. 04 MAT9751108 (4G1.5+(2x1.5)C) 12.5 10 PUR M.I. 07 MAT9120055 (4G6.0+(2x1.5)C)C 17.5 7.5
PVC M.I. 05 MAT9130051 (4G1.5+(2x1.5)C) 13.0 7.5 EYP0015AxxxxA00P03
PUR O.I. 06 MAT9851106 (4G1.5+(2x1.5)C) 12.5 10 PVC M.I. 05 MAT9130061 (4G10+(2x1.5)C)C 21.5 7.5
PUR M.I. 07 MAT9120051 (4G1.5+(2x1.5)C) 13.0 7.5 PUR O.I. 06 MAT9851116 (4G10+(2x1.5)C)C 21.0 10
EYP0012AxxxxA00P01 PUR M.I. 07 MAT9120061 (4G10+(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751118 (4G2.5+(2x1.5)C)C 14.0 10 EYP0015AxxxxM03A00
PVC M.I. 05 MAT9130065 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9130056 (4G10+(2x1.5)C)C 21.5 7.5
PUR O.I. 06 MAT9851120 (4G2.5+(2x1.5)C)C 14.0 10 PUR O.I. 06 MAT9851111 (4G10+(2x1.5)C)C 21.0 10
PUR M.I. 07 MAT9120065 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR M.I. 07 MAT9120056 (4G10+(2x1.5)C)C 21.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
