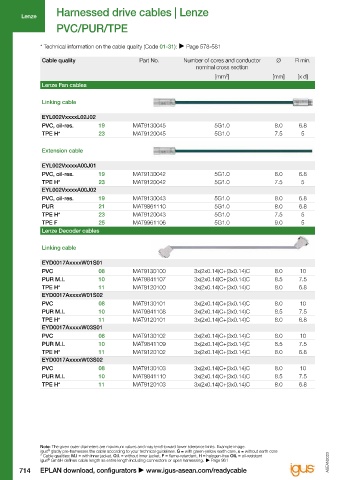

Harnessed drive cables | Lenze Harnessed drive cables | Lenze
Lenze Lenze
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Lenze Fan cables Lenze Encoder cables

Linking cable Basic cable

EYL002VxxxxL02J02 EWLExxxGM-T
PVC, oil-res. 19 MAT9130045 5G1.0 8.0 6.8 PVC 08 MAT9130026 (4x(2x0.25)+2x1.0)C 8.5 10
TPE H* 23 MAT9120045 5G1.0 7.5 5 PUR M.I. 10 MAT9841104 (4x(2x0.25)+2x1.0)C 9.0 7.5
TPE H* 11 MAT9120026 (4x(2x0.25)+2x1.0)C 9.0 6.8
Extension cable
Linking cable
EYL002VxxxxA00J01
PVC, oil-res. 19 MAT9130042 5G1.0 8.0 6.8 EWLExxxZMST
TPE H* 23 MAT9120042 5G1.0 7.5 5 PVC 08 MAT9130027 (4x(2x0.25)+2x1.0)C 8.5 10
EYL002VxxxxA00J02 PUR M.I. 10 MAT9841105 (4x(2x0.25)+2x1.0)C 9.0 7.5
PVC, oil-res. 19 MAT9130043 5G1.0 8.0 6.8 TPE H* 11 MAT9120027 (4x(2x0.25)+2x1.0)C 9.0 6.8
PUR 21 MAT9861110 5G1.0 8.0 6.8
TPE H* 23 MAT9120043 5G1.0 7.5 5 Terminal box connection cable
TPE F 25 MAT9961106 5G1.0 9.0 5
Lenze Decoder cables EWLExxxGX-T
PVC 08 MAT9130028 (4x(2x0.25)+2x1.0)C 8.5 10
Linking cable PUR M.I. 10 MAT9841106 (4x(2x0.25)+2x1.0)C 9.0 7.5
TPE H* 11 MAT9120028 (4x(2x0.25)+2x1.0)C 9.0 6.8
EYD0017AxxxxW01S01 Lenze Feedback cables
PVC 08 MAT9130100 3x(2x0.14)C+(3x0.14)C 8.0 10
PUR M.I. 10 MAT9841107 3x(2x0.14)C+(3x0.14)C 8.5 7.5 Basic cable
TPE H* 11 MAT9120100 3x(2x0.14)C+(3x0.14)C 8.0 6.8
EYD0017AxxxxW01S02 EYF0017AxxxxA00W02
PVC 08 MAT9130101 3x(2x0.14)C+(3x0.14)C 8.0 10 PUR M.I. 10 MAT9121091 4x(2x0.14)C+2x(1.0)C 9.5 7.5
PUR M.I. 10 MAT9841108 3x(2x0.14)C+(3x0.14)C 8.5 7.5
TPE H* 11 MAT9120101 3x(2x0.14)C+(3x0.14)C 8.0 6.8 Basic cable
EYD0017AxxxxW03S01
PVC 08 MAT9130102 3x(2x0.14)C+(3x0.14)C 8.0 10 EYF0018AxxxxA00S03
PUR M.I. 10 MAT9841109 3x(2x0.14)C+(3x0.14)C 8.5 7.5 PVC 08 MAT9130095 4x(2x0.14)C+2x(1.0)C 9.5 10
TPE H* 11 MAT9120102 3x(2x0.14)C+(3x0.14)C 8.0 6.8 PUR M.I. 10 MAT9121095 4x(2x0.14)C+2x(1.0)C 9.5 7.5
EYD0017AxxxxW03S02 TPE H* 11 MAT9120095 4x(2x0.14)C+2x(1.0)C 9.5 6.8
PVC 08 MAT9130103 3x(2x0.14)C+(3x0.14)C 8.0 10
PUR M.I. 10 MAT9841110 3x(2x0.14)C+(3x0.14)C 8.5 7.5 Basic cable
TPE H* 11 MAT9120103 3x(2x0.14)C+(3x0.14)C 8.0 6.8
EYF0018AxxxxA00W02
PVC 08 MAT9130091 4x(2x0.14)C+2x(1.0)C 9.5 10
TPE H* 11 MAT9120091 4x(2x0.14)C+2x(1.0)C 9.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
