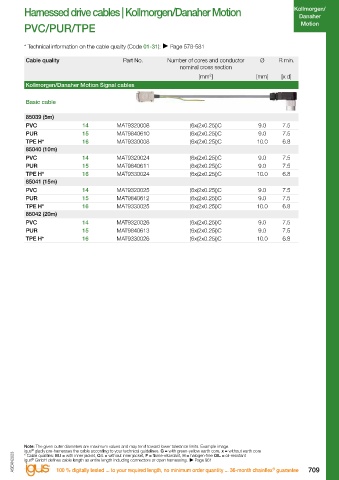

Kollmorgen/ Harnessed drive cables | Kollmorgen/Danaher Motion Harnessed drive cables | Kollmorgen/Danaher Motion Kollmorgen/
Danaher Danaher
Motion Motion
PVC/PUR/TPE PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Kollmorgen/Danaher Motion Signal cables Kollmorgen/Danaher Motion Signal cables

Basic cable Basic cable

107915 (5m) 85039 (5m)
PVC 14 MAT9320004 (8x(2x0.25))C 10.5 7.5 PVC 14 MAT9320008 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330004 (8x(2x0.34))C 13.0 6.8 PUR 15 MAT9840610 (6x(2x0.25))C 9.0 7.5
107916 (10m) TPE H* 16 MAT9330008 (6x(2x0.25))C 10.0 6.8
PVC 14 MAT9320017 (8x(2x0.25))C 10.5 7.5 85040 (10m)
TPE H* 16 MAT9330017 (8x(2x0.34))C 13.0 6.8 PVC 14 MAT9320024 (6x(2x0.25))C 9.0 7.5
107917 (15m) PUR 15 MAT9840611 (6x(2x0.25))C 9.0 7.5
PVC 14 MAT9320018 (8x(2x0.25))C 10.5 7.5 TPE H* 16 MAT9330024 (6x(2x0.25))C 10.0 6.8
TPE H* 16 MAT9330018 (8x(2x0.34))C 13.0 6.8 85041 (15m)
107918 (20m) PVC 14 MAT9320025 (6x(2x0.25))C 9.0 7.5
PVC 14 MAT9320019 (8x(2x0.25))C 10.5 7.5 PUR 15 MAT9840612 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330019 (8x(2x0.34))C 13.0 6.8 TPE H* 16 MAT9330025 (6x(2x0.25))C 10.0 6.8
107919 (25m) 85042 (20m)
PVC 14 MAT9320020 (8x(2x0.25))C 10.5 7.5 PVC 14 MAT9320026 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330020 (8x(2x0.34))C 13.0 6.8 PUR 15 MAT9840613 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330026 (6x(2x0.25))C 10.0 6.8
Basic cable

85034 (5m)
PVC 14 MAT9320007 (6x(2x0.25))C 9.0 7.5
PUR 15 MAT9840606 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330007 (6x(2x0.25))C 10.0 6.8
85035 (10m)
PVC 14 MAT9320021 (6x(2x0.25))C 9.0 7.5
PUR 15 MAT9840607 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330021 (6x(2x0.25))C 10.0 6.8
85036 (15m)
PVC 14 MAT9320022 (6x(2x0.25))C 9.0 7.5
PUR 15 MAT9840608 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330022 (6x(2x0.25))C 10.0 6.8
85037 (20m)
PVC 14 MAT9320023 (6x(2x0.25))C 9.0 7.5
PUR 15 MAT9840609 (6x(2x0.25))C 9.0 7.5
TPE H* 16 MAT9330023 (6x(2x0.25))C 10.0 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
