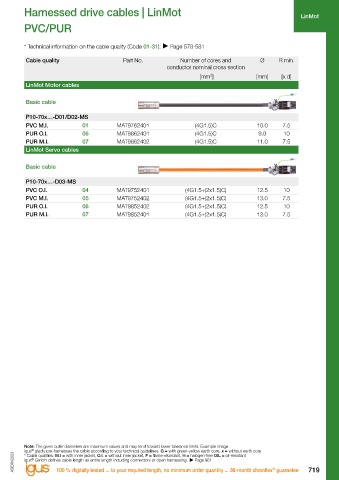

Harnessed drive cables | Lenze Harnessed drive cables | LinMot
Lenze LinMot
PVC/PUR/TPE PVC/PUR

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and Ø R min.
nominal cross section conductor nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Lenze Feedback cables LinMot Motor cables

Extension cable Basic cable

EYF0019VxxxxA00G02 P10-70x…-D01/D02-MS
PVC 08 MAT9130081 4x(2x0.14)C+2x(1.0)C 9.5 10 PVC M.I. 01 MAT9762401 (4G1.5)C 10.0 7.5
PUR M.I. 10 MAT9121081 4x(2x0.14)C+2x(1.0)C 9.5 7.5 PUR O.I. 06 MAT9862401 (4G1.5)C 9.0 10
TPE H* 11 MAT9120081 4x(2x0.14)C+2x(1.0)C 9.5 6.8 PUR M.I. 07 MAT9862402 (4G1.5)C 11.0 7.5
EYF0020VxxxxA00G01 LinMot Servo cables
PVC 08 MAT9130080 3x(2x0.14)C+(3x0.14)C 8.0 10
PUR M.I. 10 MAT9121080 3x(2x0.14)C+(3x0.14)C 8.5 7.5 Basic cable
TPE H* 11 MAT9120080 3x(2x0.14)C+(3x0.14)C 8.0 6.8
EYF0022VxxxxA00G03 P10-70x…-D03-MS
PUR M.I. 10 MAT9121082 3x(2x0.14)C+(4x0.14)C+2x(2x0.5)C 11.5 7.5 PVC O.I. 04 MAT9752401 (4G1.5+(2x1.5)C) 12.5 10
TPE H* 11 MAT9120082 3x(2x0.14)C+(4x0.14)C+2x(2x0.5)C 11.0 6.8 PVC M.I. 05 MAT9752402 (4G1.5+(2x1.5)C) 13.0 7.5
Lenze Resolver cables PUR O.I. 06 MAT9852402 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9852401 (4G1.5+(2x1.5)C) 13.0 7.5
Basic cable

EWLRxxxGM-T
PVC 08 MAT9130021 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR M.I. 10 MAT9841101 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
TPE H* 11 MAT9120021 (3x(2x0.14)C+(2x0.5)C)C 10.0 6.8

Linking cable

EWLRxxxZMST
PVC 08 MAT9130022 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR M.I. 10 MAT9841102 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
TPE H* 11 MAT9120022 (3x(2x0.14)C+(2x0.5)C)C 10.0 6.8

Terminal box connection cable

EWLRxxxGX-T
PVC 08 MAT9130023 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
PUR M.I. 10 MAT9841103 (3x(2x0.14)C+(2x0.5)C)C 10.0 7.5
TPE H* 11 MAT9120023 (3x(2x0.14)C+(2x0.5)C)C 10.0 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
®
