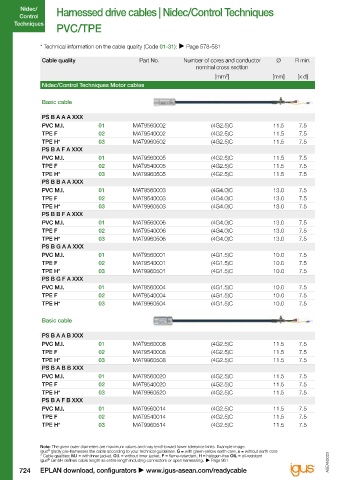

Page 730 - ASEAN Chainflex Catalogue 2023

Nidec/ Harnessed drive cables | Nidec/Control Techniques Harnessed drive cables | Nidec/Control Techniques Nidec/
Control Control
Techniques Techniques
PVC/TPE PVC/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Nidec/Control Techniques Motor cables Nidec/Control Techniques Motor cables
PS B B A B XXX
Basic cable PVC M.I. 01 MAT9560009 (4G4.0)C 13.0 7.5
TPE F 02 MAT9540009 (4G4.0)C 13.0 7.5
PS B A A A XXX TPE H* 03 MAT9960509 (4G4.0)C 13.0 7.5
PVC M.I. 01 MAT9560002 (4G2.5)C 11.5 7.5 PS B B B B XXX
TPE F 02 MAT9540002 (4G2.5)C 11.5 7.5 PVC M.I. 01 MAT9560021 (4G4.0)C 13.0 7.5
TPE H* 03 MAT9960502 (4G2.5)C 11.5 7.5 TPE F 02 MAT9540021 (4G4.0)C 13.0 7.5
PS B A F A XXX TPE H* 03 MAT9960521 (4G4.0)C 13.0 7.5
PVC M.I. 01 MAT9560005 (4G2.5)C 11.5 7.5 PS B B F B XXX
TPE F 02 MAT9540005 (4G2.5)C 11.5 7.5 PVC M.I. 01 MAT9560015 (4G4.0)C 13.0 7.5
TPE H* 03 MAT9960505 (4G2.5)C 11.5 7.5 TPE F 02 MAT9540015 (4G4.0)C 13.0 7.5
PS B B A A XXX TPE H* 03 MAT9960515 (4G4.0)C 13.0 7.5
PVC M.I. 01 MAT9560003 (4G4.0)C 13.0 7.5
TPE F 02 MAT9540003 (4G4.0)C 13.0 7.5 Basic cable
TPE H* 03 MAT9960503 (4G4.0)C 13.0 7.5
PS B B F A XXX PS B C A B XXX
PVC M.I. 01 MAT9560006 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9560010 (4G6.0)C 16.0 7.5
TPE F 02 MAT9540006 (4G4.0)C 13.0 7.5 TPE F 02 MAT9540010 (4G6.0)C 16.0 7.5
TPE H* 03 MAT9960506 (4G4.0)C 13.0 7.5 TPE H* 03 MAT9960510 (4G6.0)C 16.0 7.5
PS B G A A XXX PS B C B B XXX
PVC M.I. 01 MAT9560001 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9560022 (4G6.0)C 16.0 7.5
TPE F 02 MAT9540001 (4G1.5)C 10.0 7.5 TPE F 02 MAT9540022 (4G6.0)C 16.0 7.5
TPE H* 03 MAT9960501 (4G1.5)C 10.0 7.5 TPE H* 03 MAT9960522 (4G6.0)C 16.0 7.5
PS B G F A XXX PS B C F B XXX
PVC M.I. 01 MAT9560004 (4G1.5)C 10.0 7.5 PVC M.I. 01 MAT9560016 (4G6.0)C 16.0 7.5
TPE F 02 MAT9540004 (4G1.5)C 10.0 7.5 TPE F 02 MAT9540016 (4G6.0)C 16.0 7.5
TPE H* 03 MAT9960504 (4G1.5)C 10.0 7.5 TPE H* 03 MAT9960516 (4G6.0)C 16.0 7.5
PS B D A B XXX
Basic cable PVC M.I. 01 MAT9560011 (4G10)C 18.5 7.5
TPE F 02 MAT9540011 (4G10)C 18.5 7.5
PS B A A B XXX TPE H* 03 MAT9960511 (4G10)C 18.5 7.5
PVC M.I. 01 MAT9560008 (4G2.5)C 11.5 7.5 PS B D B B XXX
TPE F 02 MAT9540008 (4G2.5)C 11.5 7.5 PVC M.I. 01 MAT9560023 (4G10)C 18.5 7.5
TPE H* 03 MAT9960508 (4G2.5)C 11.5 7.5 TPE F 02 MAT9540023 (4G10)C 18.5 7.5
PS B A B B XXX TPE H* 03 MAT9960523 (4G10)C 18.5 7.5
PVC M.I. 01 MAT9560020 (4G2.5)C 11.5 7.5 PS B D F B XXX
TPE F 02 MAT9540020 (4G2.5)C 11.5 7.5 PVC M.I. 01 MAT9560017 (4G10)C 18.5 7.5
TPE H* 03 MAT9960520 (4G2.5)C 11.5 7.5 TPE F 02 MAT9540017 (4G10)C 18.5 7.5
PS B A F B XXX TPE H* 03 MAT9960517 (4G10)C 18.5 7.5
PVC M.I. 01 MAT9560014 (4G2.5)C 11.5 7.5
TPE F 02 MAT9540014 (4G2.5)C 11.5 7.5
TPE H* 03 MAT9960514 (4G2.5)C 11.5 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
724 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 725
®
