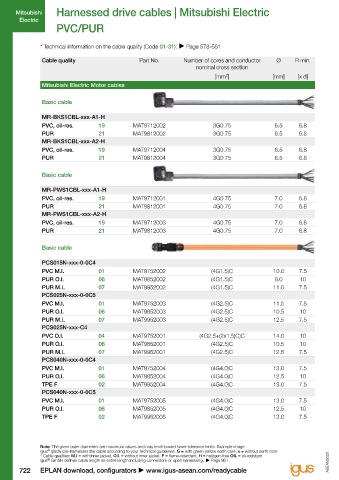

Page 728 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Mitsubishi Electric Harnessed drive cables | Mitsubishi Electric
Mitsubishi Mitsubishi
Electric Electric
PVC/PUR PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Mitsubishi Electric Motor cables Mitsubishi Electric Motor cables
PCS060N-xxx-0-0C5
Basic cable PVC M.I. 01 MAT9752006 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9852006 (4G6.0)C 14.5 10
MR-BKS1CBL-xxx-A1-H TPE F 02 MAT9952006 (4G6.0)C 16.0 7.5
PVC, oil-res. 19 MAT9712002 3G0.75 6.5 6.8 Mitsubishi Electric Encoder cables
PUR 21 MAT9812002 3G0.75 6.5 6.8
MR-BKS1CBL-xxx-A2-H Basic cable
PVC, oil-res. 19 MAT9712004 3G0.75 6.5 6.8
PUR 21 MAT9812004 3G0.75 6.5 6.8 MR-J3ENCBL-xxx-A1-H
PVC 14 MAT9722002 (3x(2x0.25))C 7.0 7.5
Basic cable PUR 15 MAT9822002 (3x(2x0.25))C 7.0 7.5
MR-J3ENCBL-xxx-A2-H
MR-PWS1CBL-xxx-A1-H PVC 14 MAT9722003 (3x(2x0.25))C 7.0 7.5
PVC, oil-res. 19 MAT9712001 4G0.75 7.0 6.8 PUR 15 MAT9822003 (3x(2x0.25))C 7.0 7.5
PUR 21 MAT9812001 4G0.75 7.0 6.8
MR-PWS1CBL-xxx-A2-H Basic cable
PVC, oil-res. 19 MAT9712003 4G0.75 7.0 6.8
PUR 21 MAT9812003 4G0.75 7.0 6.8 MR-J3ENSCBL-xxx-H
PVC 14 MAT9722001 (3x(2x0.25))C 7.0 7.5
Basic cable PUR 15 MAT9822001 (3x(2x0.25))C 7.0 7.5

PCS015N-xxx-0-0C4
PVC M.I. 01 MAT9752002 (4G1.5)C 10.0 7.5
PUR O.I. 06 MAT9852002 (4G1.5)C 9.0 10
PUR M.I. 07 MAT9952002 (4G1.5)C 11.0 7.5
PCS025N-xxx-0-0C5
PVC M.I. 01 MAT9752003 (4G2.5)C 11.5 7.5
PUR O.I. 06 MAT9852003 (4G2.5)C 10.5 10
PUR M.I. 07 MAT9952003 (4G2.5)C 12.5 7.5
PCS025N-xxx-C4
PVC O.I. 04 MAT9752001 (4G2.5+(2x1.5)C)C 14.0 10
PUR O.I. 06 MAT9852001 (4G2.5)C 10.5 10
PUR M.I. 07 MAT9952001 (4G2.5)C 12.5 7.5
PCS040N-xxx-0-0C4
PVC M.I. 01 MAT9752004 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9852004 (4G4.0)C 12.5 10
TPE F 02 MAT9952004 (4G4.0)C 13.0 7.5
PCS040N-xxx-0-0C5
PVC M.I. 01 MAT9752005 (4G4.0)C 13.0 7.5
PUR O.I. 06 MAT9852005 (4G4.0)C 12.5 10
TPE F 02 MAT9952005 (4G4.0)C 13.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
