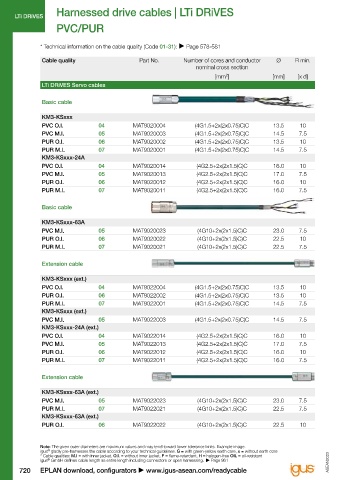

Page 726 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | LTi DRiVES Harnessed drive cables | LTi DRiVES
LTi DRiVES LTi DRiVES
PVC/PUR PVC/PUR/TPE

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nominal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
LTi DRiVES Servo cables LTi DRiVES Encoder cables

Basic cable Basic cable

KM3-KSxxx KGH2-KSxxx
PVC O.I. 04 MAT9020004 (4G1.5+2x(2x0.75)C)C 13.5 10 PVC 08 MAT9021004 (4x(2x0.25)+2x1.0)C 8.5 10
PVC M.I. 05 MAT9020003 (4G1.5+2x(2x0.75)C)C 14.5 7.5 TPE H* 11 MAT9021001 (4x(2x0.25)+2x1.0)C 9.0 6.8
PUR O.I. 06 MAT9020002 (4G1.5+2x(2x0.75)C)C 13.5 10 KGH3-KSxxx
PUR M.I. 07 MAT9020001 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC 08 MAT9021014 (4x(2x0.25)+2x1.0)C 8.5 10
KM3-KSxxx-24A TPE H* 11 MAT9021011 (4x(2x0.25)+2x1.0)C 9.0 6.8
PVC O.I. 04 MAT9020014 (4G2.5+2x(2x1.5)C)C 16.0 10 KGS2-KSxxx
PVC M.I. 05 MAT9020013 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR O.I. 09 MAT9021023 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR O.I. 06 MAT9020012 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR M.I. 10 MAT9021022 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
PUR M.I. 07 MAT9020011 (4G2.5+2x(2x1.5)C)C 16.0 7.5 TPE H* 11 MAT9021021 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8
KRY2-CDF-KSxxx

Basic cable PVC 08 MAT9021034 (4x(2x0.25)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9021032 (4x(2x0.25)+2x0.5)C 8.5 7.5
KM3-KSxxx-63A TPE H* 11 MAT9021031 (4x(2x0.25)+2x0.5)C 8.5 6.8
PVC M.I. 05 MAT9020023 (4G10+2x(2x1.5)C)C 23.0 7.5 KRY2-KSxxx
PUR O.I. 06 MAT9020022 (4G10+2x(2x1.5)C)C 22.5 10 PVC 08 MAT9021044 (4x(2x0.25)+2x0.5)C 8.0 10
PUR M.I. 07 MAT9020021 (4G10+2x(2x1.5)C)C 22.5 7.5 PUR M.I. 10 MAT9021042 (4x(2x0.25)+2x0.5)C 8.5 7.5
TPE H* 11 MAT9021041 (4x(2x0.25)+2x0.5)C 8.5 6.8
Extension cable
Extension cable
KM3-KSxxx (ext.)
PVC O.I. 04 MAT9022004 (4G1.5+2x(2x0.75)C)C 13.5 10 KGH2-KSxxx (ext.)
PUR O.I. 06 MAT9022002 (4G1.5+2x(2x0.75)C)C 13.5 10 PVC 08 MAT9023004 (4x(2x0.25)+2x1.0)C 8.5 10
PUR M.I. 07 MAT9022001 (4G1.5+2x(2x0.75)C)C 14.5 7.5 TPE H* 11 MAT9023001 (4x(2x0.25)+2x1.0)C 9.0 6.8
KM3-KSxxx (ext.) KGH3-KSxxx (ext.)
PVC M.I. 05 MAT9022003 (4G1.5+2x(2x0.75)C)C 14.5 7.5 PVC 08 MAT9023014 (4x(2x0.25)+2x1.0)C 8.5 10
KM3-KSxxx-24A (ext.) TPE H* 11 MAT9023011 (4x(2x0.25)+2x1.0)C 9.0 6.8
PVC O.I. 04 MAT9022014 (4G2.5+2x(2x1.5)C)C 16.0 10 KGS2-KSxxx (ext.)
PVC M.I. 05 MAT9022013 (4G2.5+2x(2x1.5)C)C 17.0 7.5 PUR O.I. 09 MAT9023023 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 10.5 10
PUR O.I. 06 MAT9022012 (4G2.5+2x(2x1.5)C)C 16.0 10 PUR M.I. 10 MAT9023022 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 7.5
PUR M.I. 07 MAT9022011 (4G2.5+2x(2x1.5)C)C 16.0 7.5 TPE H* 11 MAT9023021 (2x(2x(2x0.14))+(4x0.14)C+(4x0.5))C 11.0 6.8
KRY2-CDF-KSxxx (ext.)
Extension cable PVC 08 MAT9023034 (4x(2x0.25)+2x0.5)C 8.0 10
PUR M.I. 10 MAT9023032 (4x(2x0.25)+2x0.5)C 8.5 7.5
KM3-KSxxx-63A (ext.) TPE H* 11 MAT9023031 (4x(2x0.25)+2x0.5)C 8.5 6.8
PVC M.I. 05 MAT9022023 (4G10+2x(2x1.5)C)C 23.0 7.5 KRY2-KSxxx (ext.)
PUR M.I. 07 MAT9022021 (4G10+2x(2x1.5)C)C 22.5 7.5 PVC 08 MAT9023044 (4x(2x0.25)+2x0.5)C 8.0 10
KM3-KSxxx-63A (ext.) PUR M.I. 10 MAT9023042 (4x(2x0.25)+2x0.5)C 8.5 7.5
PUR O.I. 06 MAT9022022 (4G10+2x(2x1.5)C)C 22.5 10 TPE H* 11 MAT9023041 (4x(2x0.25)+2x0.5)C 8.5 6.8

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
720 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 721
®
