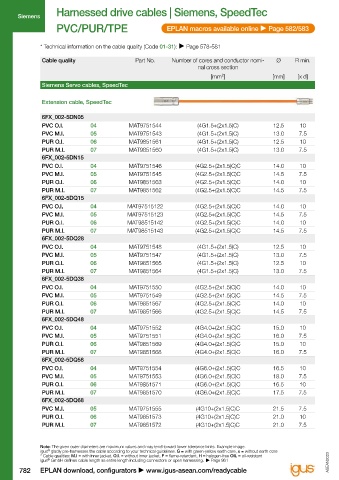

Page 788 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Siemens, SpeedTec Harnessed drive cables | Stöber
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online  Page 582/583 PVC/PUR/TPE EPLAN macros available online  Page 582/583

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Servo cables, SpeedTec Stöber Servo cables

Extension cable, SpeedTec Basic cable

6FX_002-5DN05 Gr.1-Motor-1,0mm²
PVC O.I. 04 MAT9751544 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751601 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9751543 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9430001 (4G1.0+2x(2x0.75)C) 13.5 7.5
PUR O.I. 06 MAT9851561 (4G1.5+(2x1.5)C) 12.5 10 PUR O.I. 06 MAT9851601 (4G1.0+2x(2x0.75)C) 13.0 10
PUR M.I. 07 MAT9851560 (4G1.5+(2x1.5)C) 13.0 7.5 PUR M.I. 07 MAT9420001 (4G1.0+2x(2x0.75)C) 13.5 7.5
6FX_002-5DN15 Gr.1-Motor-1,5mm²
PVC O.I. 04 MAT9751546 (4G2.5+(2x1.5)C)C 14.0 10 PVC O.I. 04 MAT9751602 (4G1.5+2x(2x0.75)C)C 13.5 10
PVC M.I. 05 MAT9751545 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9430002 (4G1.5+2x(2x0.75)C)C 14.5 7.5
PUR O.I. 06 MAT9851563 (4G2.5+(2x1.5)C)C 14.0 10 PUR O.I. 06 MAT9851602 (4G1.5+2x(2x0.75)C)C 13.5 10
PUR M.I. 07 MAT9851562 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR M.I. 07 MAT9420002 (4G1.5+2x(2x0.75)C)C 14.5 7.5
6FX_002-5DQ15 Gr.1-Motor-2,5mm²
PVC O.I. 04 MAT97515122 (4G2.5+(2x1.5)C)C 14.0 10 PVC O.I. 04 MAT9751603 (4G2.5+2x(2x1.5)C)C 16.0 10
PVC M.I. 05 MAT97515123 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9430003 (4G2.5+2x(2x1.5)C)C 17.0 7.5
PUR O.I. 06 MAT98515142 (4G2.5+(2x1.5)C)C 14.0 10 PUR O.I. 06 MAT9851603 (4G2.5+2x(2x1.5)C)C 16.0 10
PUR M.I. 07 MAT98515143 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR M.I. 07 MAT9420003 (4G2.5+2x(2x1.5)C)C 16.0 7.5
6FX_002-5DQ28 Gr.1-Motor-4,0mm²
PVC O.I. 04 MAT9751548 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751604 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9751547 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9430004 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9851565 (4G1.5+(2x1.5)C) 12.5 10 PUR O.I. 06 MAT9851604 (4G4.0+2x(2x1.5)C)C 17.0 10
PUR M.I. 07 MAT9851564 (4G1.5+(2x1.5)C) 13.0 7.5 PUR M.I. 07 MAT9420004 (4G4.0+2x(2x1.5)C)C 17.5 7.5
6FX_002-5DQ38
PVC O.I. 04 MAT9751550 (4G2.5+(2x1.5)C)C 14.0 10 Basic cable
PVC M.I. 05 MAT9751549 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9851567 (4G2.5+(2x1.5)C)C 14.0 10 Gr.1,5-Motor-4,0mm²
PUR M.I. 07 MAT9851566 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC O.I. 04 MAT9751605 (4G4.0+2x(2x1.5)C)C 17.0 10
6FX_002-5DQ48 PVC M.I. 05 MAT9430005 (4G4.0+2x(2x1.5)C)C 18.0 7.5
PVC O.I. 04 MAT9751552 (4G4.0+(2x1.5)C)C 15.0 10 PUR O.I. 06 MAT9851605 (4G4.0+2x(2x1.5)C)C 17.0 10
PVC M.I. 05 MAT9751551 (4G4.0+(2x1.5)C)C 16.0 7.5 PUR M.I. 07 MAT9420005 (4G4.0+2x(2x1.5)C)C 17.5 7.5
PUR O.I. 06 MAT9851569 (4G4.0+(2x1.5)C)C 15.0 10 Gr.1,5-Motor-6,0mm²
PUR M.I. 07 MAT9851568 (4G4.0+(2x1.5)C)C 16.0 7.5 PVC O.I. 04 MAT9751606 (4G6.0+2x(2x1.5)C)C 19.0 10
6FX_002-5DQ58 PVC M.I. 05 MAT9430006 (4G6.0+2x(2x1.5)C)C 21.0 7.5
PVC O.I. 04 MAT9751554 (4G6.0+(2x1.5)C)C 16.5 10 PUR O.I. 06 MAT9851606 (4G6.0+2x(2x1.5)C)C 19.0 10
PVC M.I. 05 MAT9751553 (4G6.0+(2x1.5)C)C 18.0 7.5 PUR M.I. 07 MAT9420006 (4G6.0+2x(2x1.5)C)C 19.5 7.5
PUR O.I. 06 MAT9851571 (4G6.0+(2x1.5)C)C 16.5 10 Gr.1,5-Motor-10,0mm²
PUR M.I. 07 MAT9851570 (4G6.0+(2x1.5)C)C 17.5 7.5 PVC M.I. 05 MAT9430007 (4G10+2x(2x1.5)C)C 23.0 7.5
6FX_002-5DQ68 PUR O.I. 06 MAT9851607 (4G10+2x(2x1.5)C)C 22.5 10
PVC M.I. 05 MAT9751555 (4G10+(2x1.5)C)C 21.5 7.5 PUR M.I. 07 MAT9420007 (4G10+2x(2x1.5)C)C 22.5 7.5
PUR O.I. 06 MAT9851573 (4G10+(2x1.5)C)C 21.0 10
PUR M.I. 07 MAT9851572 (4G10+(2x1.5)C)C 21.0 7.5

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
782 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 783
®
