Harnessed drive cables | Stöber                                                                             ... over 5,000 drive cables ... in just 8 seconds ...                                            Online
        Stöber                                                                                                                                                                                                                  readycable ®
                                                                                                                                                 ®
                     PVC/PUR                                                                                                     readycable  finder 2.0                                                                           finder

               * Technical information on the cable quality (Code 01-31):  Page 578-581

                Cable quality                     Part No.       Number of cores and conductor    Ø      R min.
                                                                      nominal cross section
                                                                            [mm²]                [mm]     [x d]
                Stöber Encoder cables


                iSDS4000 Basic cable

                Encoder ED/EK iSDS4000
                PVC                 08          MAT9431001            (4x(2x0.34)+4x0.5)C        9.5      10
                PUR O.I.            09          MAT9941601            (4x(2x0.34)+4x0.5)C        9.5      10
                PUR M.I.            10          MAT9841601            (4x(2x0.34)+4x0.5)C        10.0     7.5
                TPE H*              11          MAT9421001            (4x(2x0.34)+4x0.5)C        10.0     6.8


                iSDS4000 Basic cable

                Encoder ES iSDS4000
                PUR O.I.            09          MAT9941602        ((4x0.25)+3x(2x0.25+2x0.5))C   9.5      10
                PUR M.I.            10          MAT9841602        ((4x0.25)+3x(2x0.25+2x0.5))C   11.0     7.5
                TPE H*              11          MAT9421002        ((4x0.25)+3x(2x0.25+2x0.5))C   10.0     6.8


                iHTL Basic cable

                Encoder HTL
                PVC                 08          MAT9431006            (4x(2x0.25)+2x0.5)C        8.0      10
                PUR M.I.            10          MAT9841606            (4x(2x0.25)+2x0.5)C        8.5      7.5

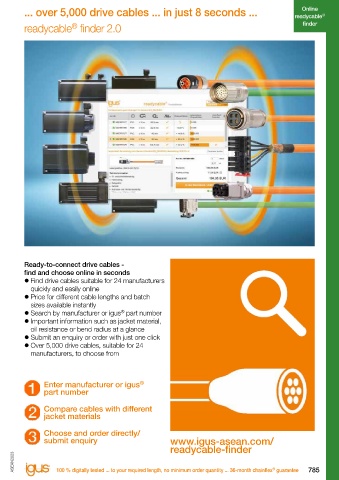

                TPE H*              11          MAT9421006            (4x(2x0.25)+2x0.5)C        8.5      6.8                    Ready-to-connect drive cables -
                                                                                                                                 find and choose online in seconds
                iMDS5000 Basic cable                                                                                             z  Find drive cables suitable for 24 manufacturers
                                                                                                                                   quickly and easily online
                Encoder iMDS5000                                                                                                 z  Price for different cable lengths and batch
                PVC                 08          MAT9431004            (4x(2x0.25)+2x0.5)C        8.0      10                       sizes available instantly
                PUR M.I.            10          MAT9841604            (4x(2x0.25)+2x0.5)C        8.5      7.5                    z  Search by manufacturer or igus  part number
                                                                                                                                                                   ®
                TPE H*              11          MAT9421004            (4x(2x0.25)+2x0.5)C        8.5      6.8
                                                                                                                                 z  Important information such as jacket material,
                                                                                                                                   oil resistance or bend radius at a glance
                iMDS5000 Basic cable                                                                                             z  Submit an enquiry or order with just one click

                                                                                                                                 z  Over 5,000 drive cables, suitable for 24
                Resolver iMDS5000                                                                                                  manufacturers, to choose from
                PVC                 08          MAT9431005               (3x(2x0.25)C)C          9.0      10
                PUR M.I.            10          MAT9841605               (3x(2x0.25))C           7.5      7.5
                TPE H*              11          MAT9421005               (3x(2x0.25))C           7.5      6.8
                                                                                                                                                                         ®
                                                                                                                                       Enter manufacturer or igus
                iSDS4000 Basic cable                                                                                                   part number

                Resolver iSDS4000                                                                                                      Compare cables with different
                PVC                 08          MAT9431003            (4x(2x0.25)+2x0.5)C        8.0      10                           jacket materials
                PUR M.I.            10          MAT9841603            (4x(2x0.25)+2x0.5)C        8.5      7.5
                TPE H*              11          MAT9421003            (4x(2x0.25)+2x0.5)C        8.5      6.8                          Choose and order directly/
                                                                                                                                       submit enquiry                               www.igus-asean.com/
               Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.                                                        readycable-finder
               igus  gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
                  ®
               * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
                  ®
               igus  GmbH defines cable length as entire length including connectors or open harnessing.    Page 961  ASEAN2023  ASEAN2023
