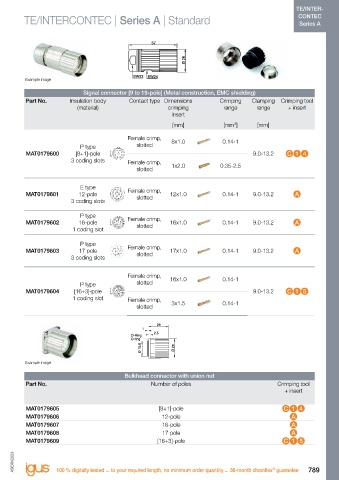

Page 795 - ASEAN Chainflex Catalogue 2023

TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series A | Standard/Speedtec TE/INTERCONTEC | Series A | Standard CONTEC
Series A Series A

Signal connectors Series A, M23 standard [9 to 19-pole]

Types
z Connector, standard and push-pull version, angular connector
z Lead-through Example image
z Coupling, standard or with central attachment
z PG 13.5 installation box Signal connector [9 to 19-pole] (Metal construction, EMC shielding)
z Straight installation box with flange Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool
z Installation box angled and angled rotatable with flange (material) crimping range range + insert
insert
[mm] [mm²] [mm]
Number of poles in insulation body Female crimp,
z 6, 7, [8+1], 9, 10, 12, 16, 17, [16+3] slotted 8x1.0 0.14-1
P type
MAT0179600 [8+1]-pole 9.0-13.2 C 1 4

3 coding slots Female crimp,
Electrical information slotted 1x2.0 0.35-2.5
Design Signal 6 to 12-pole Signal 16 to 19-pole
Max. continuous nominal current 10A 9A E type
Nominal voltage (AC/DC) 160V 125V MAT0179601 12-pole Female crimp, 12x1.0 0.14-1 9.0-13.2 A
Testing voltage 2500V 2500V 3 coding slots slotted
Contact resistance < 5mΩ < 5mΩ
Insertion cycles > 50 > 50 P type Female crimp,
MAT0179602 16-pole slotted 16x1.0 0.14-1 9.0-13.2 A
1 coding slot
Technical data P type
Locking Thread M23 MAT0179603 17 pole Female crimp, 17x1.0 0.14-1 9.0-13.2 A
Temperature range -20°C up to +130°C 3 coding slots slotted
Cable clamp Crown clamp
Protection class IP 66/67 [plugged] Female crimp,

P type slotted 16x1.0 0.14-1
Data according to VDE 0110/EN 61984, Clause 6.19.2.2 MAT0179604 [16+3]-pole 9.0-13.2 C 1 5

Pollution degree 3 1 coding slot Female crimp,
Over-voltage category III slotted 3x1.5 0.14-1
Max. installation height 2000m

Connector materials
Housing Zinc die-casting/brass, nickel-plated
Coupling nut Brass, nickel-plated
Insulation body (material) PA 6.6/PBT, UL 94/V0
Contacts Brass, gold-plated Example image
Seals FPM/HNBR
Clamping ring Brass, nickel-plated Bulkhead connector with union nut
Part No. Number of poles Crimping tool
+ insert

MAT0179605 [8+1]-pole C 1 4

MAT0179606 12-pole A
MAT0179607 16-pole A
MAT0179608
17 pole
A
+ MAT0179609 [16+3]-pole C 1 5

788 EPLAN download, configurators  www.igus-asean.com/readycable ASEAN2023 ASEAN2023 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 789
®
