TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series A | Speedtec TE/INTERCONTEC | Series B | Standard/Speedtec CONTEC
Series A Series B

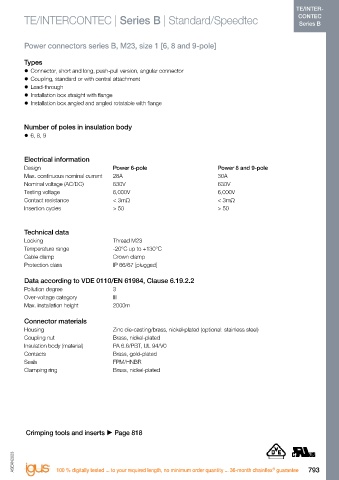

Power connectors series B, M23, size 1 [6, 8 and 9-pole]

Types
z Connector, short and long, push-pull version, angular connector
Example image z Coupling, standard or with central attachment
z Lead-through
Signal connector [9 to 19-pole] (Metal construction, EMC shielding) z Installation box straight with flange
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool z Installation box angled and angled rotatable with flange
(material) crimping range range + insert
insert

[mm] [mm²] [mm] Number of poles in insulation body

E type Male crimp 8x1.0 0.14-1 z 6, 8, 9
MAT01723471 [8+1]-pole 9.0-13.2 C 1 4

3 coding slots Male crimp 1x2.0 0.35-2.5
Electrical information
Design Power 6-pole Power 8 and 9-pole
P type
MAT01723472 12-pole Male crimp 12x1.0 0.14-1 9.0-13.2 A Max. continuous nominal current 28A 30A
3 coding slots Nominal voltage (AC/DC) 630V 630V
Testing voltage 6,000V 6,000V
E type Contact resistance < 3mΩ < 3mΩ
MAT01723473 16-pole Male crimp 16x1.0 0.14-1 9.0-13.2 A Insertion cycles > 50 > 50
1 coding slot

E type
MAT01723474 17 pole Male crimp 17x1.0 0.14-1 9.0-13.2 A Technical data
3 coding slots Locking Thread M23
Temperature range -20°C up to +130°C
E type Male crimp 16x1.0 0.14-1 Cable clamp Crown clamp
MAT01723475 [16+3]-pole 9.0-13.2 C 1 5 Protection class IP 66/67 [plugged]

1 coding slot Male crimp 3x1.5 0.14-1
Data according to VDE 0110/EN 61984, Clause 6.19.2.2
Pollution degree 3

Over-voltage category III
Max. installation height 2000m

Connector materials

Example image Housing Zinc die-casting/brass, nickel-plated (optional: stainless steel)
Coupling nut Brass, nickel-plated
Coupling with central attachment Insulation body (material) PA 6.6/PBT, UL 94/V0
Part No. Number of poles Crimping tool Contacts Brass, gold-plated
+ insert
Seals FPM/HNBR
Clamping ring Brass, nickel-plated
MAT01723476 [8+1]-pole C 1 4

MAT01723477 12-pole A
MAT01723478 16-pole A
MAT01723479 17 pole A
MAT01723480 [16+3]-pole C 1 5

Crimping tools and inserts  Page 818 Crimping tools and inserts  Page 818
+
