Page 803 - ASEAN Chainflex Catalogue 2023

TE/INTER- TE/INTER-

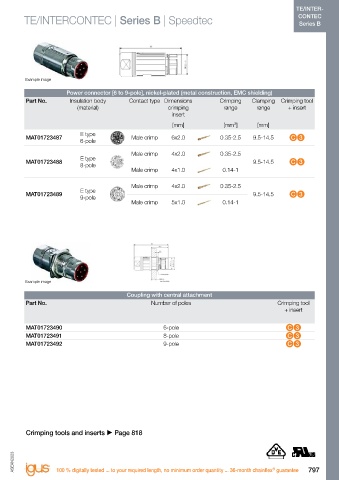

CONTEC TE/INTERCONTEC | Series B | Standard TE/INTERCONTEC | Series B | Speedtec CONTEC
Series B Series B

Example image Example image

Power connector [6 to 9-pole], nickel-plated (metal construction, EMC shielding) Power connector [6 to 9-pole], nickel-plated (metal construction, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool
(material) crimping range range + insert (material) crimping range range + insert
insert insert

[mm] [mm²] [mm] [mm] [mm²] [mm]
E type E type
MAT0179623 Male crimp 6x2.0 0.35-2.5 9.5-14.5 C 3 MAT01723487 Male crimp 6x2.0 0.35-2.5 9.5-14.5 C 3

6-pole 6-pole
Male crimp 4x2.0 0.35-2.5 Male crimp 4x2.0 0.35-2.5
E type E type
MAT0179624 9.5-14.5 C 3 MAT01723488 9.5-14.5 C 3

8-pole 8-pole
Male crimp 4x1.0 0.14-1 Male crimp 4x1.0 0.14-1
Male crimp 6x2.0 0.35-2.5 Male crimp 4x2.0 0.35-2.5
E type E type
MAT0179625 9.5-14.5 C 3 MAT01723489 9.5-14.5 C 3

9-pole 9-pole
Male crimp 4x1.0 0.14-1 Male crimp 5x1.0 0.14-1

Example image Example image

Coupling with central attachment Coupling with central attachment
Part No. Number of poles Crimping tool Part No. Number of poles Crimping tool
+ insert + insert

MAT0179626 6-pole C 3 MAT01723490 6-pole C 3

MAT0179627 8-pole C 3 MAT01723491 8-pole C 3

MAT0179628 9-pole C 3 MAT01723492 9-pole C 3

Crimping tools and inserts  Page 818 Crimping tools and inserts  Page 818
+
