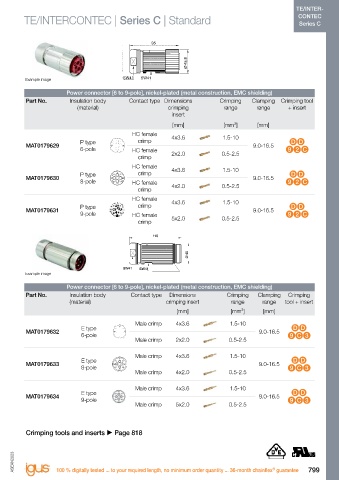

Page 805 - ASEAN Chainflex Catalogue 2023

TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series C | Standard/Speedtec TE/INTERCONTEC | Series C | Standard CONTEC
Series C Series C

Power connectors series C, M40, size 1.5 [6, 8 and 9-pole]

Types
z Connector, angular connector
z Coupling Example image
z Lead-through
z Straight installation box with flange Power connector [6 to 9-pole], nickel-plated (metal construction, EMC shielding)
z Installation box angled and angled rotatable with flange Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool
(material) crimping range range + insert
insert

Number of poles in insulation body [mm] [mm²] [mm]
z 6, 8, 9 HC female 4x3.6 1.5-10
P type crimp D D

MAT0179629 9.0-16.5
6-pole HC female 2x2.0 0.5-2.5 9 2 C

Electrical information crimp
Design Power 6 to 19-pole HC female 4x3.6 1.5-10

Max. continuous nominal current 75A MAT0179630 P type crimp 9.0-16.5 D D

Nominal voltage (AC/DC) 630V 8-pole HC female 4x2.0 0.5-2.5 9 2 C
Testing voltage 6,000V crimp
Contact resistance < 1mΩ HC female 4x3.6 1.5-10

Insertion cycles > 50 MAT0179631 P type crimp 9.0-16.5 D D
9-pole HC female 9 2 C

crimp 5x2.0 0.5-2.5
Technical data
Locking Thread M40
Temperature range -20°C up to +130°C
Cable clamp Crown clamp
Protection class IP 66/67 [plugged]
Example image
Data according to VDE 0110/EN 61984, Clause 6.19.2.2
Pollution degree 3 Power connector [6 to 9-pole], nickel-plated (metal construction, EMC shielding)
Over-voltage category III Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
Max. installation height 2000m (material) crimping insert range range tool + insert
[mm] [mm²] [mm]
Connector materials Male crimp 4x3.6 1.5-10
Housing Magnesium die-casting/aluminium MAT0179632 E type 9.0-16.5 D D

Coupling nut Brass, nickel-plated 6-pole Male crimp 2x2.0 0.5-2.5 9 C 3
Insulation body (material) PA 6.6/PBT, UL 94/V0
Contacts Brass, gold-plated Male crimp 4x3.6 1.5-10

Seals FPM/HNBR MAT0179633 E type 9.0-16.5 D D

Clamping ring Brass, nickel-plated 8-pole Male crimp 4x2.0 0.5-2.5 9 C 3
Male crimp 4x3.6 1.5-10
E type D D

MAT0179634 9.0-16.5
9-pole 9 C 3

Male crimp 5x2.0 0.5-2.5

+ Crimping tools and inserts  Page 818

798 EPLAN download, configurators  www.igus-asean.com/readycable ASEAN2023 ASEAN2023 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 799
®
