TE/INTER-
CONTEC TE/INTERCONTEC | Series D | Standard TE/INTERCONTEC | Series 615 Series 615
Series D

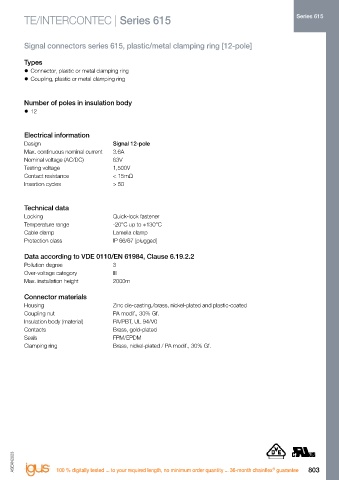

Signal connectors series 615, plastic/metal clamping ring [12-pole]

Types
z Connector, plastic or metal clamping ring
Example image z Coupling, plastic or metal clamping ring

Power connector [6 and 8-pole] nickel-plated (metal construction, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool Number of poles in insulation body
(material) crimping range range + insert z 12
insert

[mm] [mm²] [mm]
Female crimp 4x10 10-10 Electrical information
P type (power) Design Signal 12-pole
MAT0179635 - E 10 C 7

6-pole Female crimp Max. continuous nominal current 3.6A
(signal) 2x1.6 1.5-1.5 Nominal voltage (AC/DC) 63V
Female crimp 4x10 10-10 Testing voltage 1,500V
P type (power)
MAT0179636 - E 10 C 7 Contact resistance < 15mΩ

8-pole Female crimp Insertion cycles > 50
(signal) 4x1.6 1.5-1.5
Technical data
Locking Quick-lock fastener
Temperature range -20°C up to +130°C
Cable clamp Lamella clamp

Protection class IP 66/67 [plugged]

Data according to VDE 0110/EN 61984, Clause 6.19.2.2
Pollution degree 3
Example image Over-voltage category III
Max. installation height 2000m
Power coupling [6 and 8-pole] nickel-plated (metal construction, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Connector materials
(material) crimping insert range range tool + insert
Housing Zinc die-casting,/brass, nickel-plated and plastic-coated
[mm] [mm²] [mm] Coupling nut PA modif., 30% Gf.
Male crimp 4x10 10-10 Insulation body (material) PA/PBT, UL 94/V0
E type (power) E 10 Contacts Brass, gold-plated

MAT0179637 -
6-pole Male crimp C 8 Seals FPM/EPDM

(signal) 2x1.6 1.5-1.5 Clamping ring Brass, nickel-plated / PA modif., 30% Gf.
Male crimp 4x10 10-10
E type (power) E 10
MAT0179638 -
8-pole Male crimp C 8

(signal) 4x1.6 1.5-1.5

Crimping tools and inserts  Page 818
+
