TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series C | Speedtec TE/INTERCONTEC | Series D | Standard CONTEC
Series C Series D

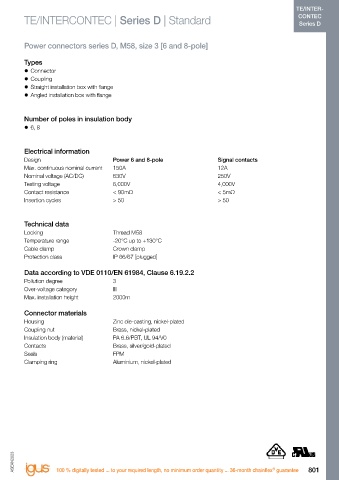

Power connectors series D, M58, size 3 [6 and 8-pole]

Types
z Connector
Example image z Coupling
z Straight installation box with flange
Power connector [6 to 9-pole], nickel-plated (metal construction, EMC shielding) z Angled installation box with flange
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping tool
(material) crimping range range + insert
insert
Number of poles in insulation body
[mm] [mm²] [mm] z 6, 8
HC female 4x3.6 1.5-10
P type crimp D D

MAT01723501 9.0-16.5
6-pole HC female 9 2 C Electrical information

crimp 2x2.0 0.5-2.5 Design Power 6 and 8-pole Signal contacts
HC female 4x3.6 1.5-10 Max. continuous nominal current 150A 12A
P type crimp D D

MAT01723502 9.0-16.5 Nominal voltage (AC/DC) 630V 250V
8-pole HC female 9 2 C Testing voltage 6,000V 4,000V

crimp 4x2.0 0.5-2.5 Contact resistance < 90mΩ < 5mΩ
HC female 4x3.6 1.5-10 Insertion cycles > 50 > 50
P type crimp D D

MAT01723503 9.0-16.5
9-pole HC female 9 2 C

crimp 5x2.0 0.5-2.5 Technical data
Locking Thread M58

Temperature range -20°C up to +130°C
Cable clamp Crown clamp
Protection class IP 66/67 [plugged]
Example image Data according to VDE 0110/EN 61984, Clause 6.19.2.2
Pollution degree 3
Power connector [6 to 9-pole], nickel-plated (metal construction, EMC shielding) Over-voltage category III
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Max. installation height 2000m
(material) crimping insert range range tool + insert
[mm] [mm²] [mm] Connector materials

Male crimp 4x3.6 1.5-10 Housing Zinc die-casting, nickel-plated
E type D D Coupling nut Brass, nickel-plated

MAT01723504 9.0-16.5
6-pole 9 C 3 Insulation body (material) PA 6.6/PBT, UL 94/V0

Male crimp 2x2.0 0.5-2.5
Contacts Brass, silver/gold-plated
Male crimp 4x3.6 1.5-10 Seals FPM
E type D D
MAT01723505 9.0-16.5 Clamping ring Aluminium, nickel-plated
8-pole 9 C 3

Male crimp 4x2.0 0.5-2.5
Male crimp 4x3.6 1.5-10
E type D D

MAT01723506 9.0-16.5
9-pole 9 C 3

Male crimp 5x2.0 0.5-2.5
Crimping tools and inserts  Page 818
+
