TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series 615 TE/INTERCONTEC | Series 915 CONTEC
Series 615 Series 915

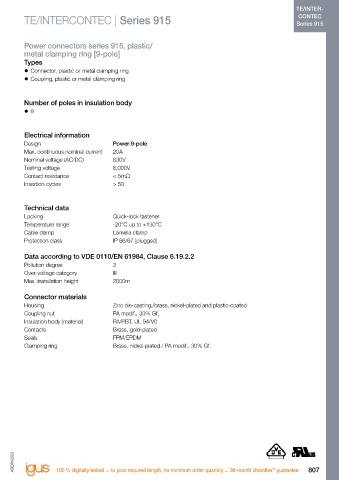

Power connectors series 915, plastic/
metal clamping ring [9-pole]
Types
z Connector, plastic or metal clamping ring
Example image z Coupling, plastic or metal clamping ring

Signal connector [12-pole], nickel-plated (metal clamping ring, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Number of poles in insulation body
(material) crimping insert range range tool + insert
z 9
[mm] [mm²] [mm]
P type Female crimp,
MAT01730639 12x1 0.1-0.75 10.5-12.5 C 14

12-pole slotted Electrical information
Design Power 9-pole
Max. continuous nominal current 20A
Nominal voltage (AC/DC) 630V
Testing voltage 6,000V
Contact resistance < 5mΩ
Insertion cycles > 50

Example image
Technical data
Signal coupling [12-pole], nickel-plated (metal clamping ring, EMC shielding) Locking Quick-lock fastener
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Temperature range -20°C up to +130°C
(material) crimping insert range range tool + insert Cable clamp Lamella clamp

[mm] [mm²] [mm] Protection class IP 66/67 [plugged]
E type
MAT01730646 Male crimp 12x1 0.1-0.75 10.5-12.5 C 14

12-pole Data according to VDE 0110/EN 61984, Clause 6.19.2.2
Pollution degree 3
Over-voltage category III
Max. installation height 2000m

Connector materials
Housing Zinc die-casting,/brass, nickel-plated and plastic-coated
Coupling nut PA modif., 30% Gf.
Insulation body (material) PA/PBT, UL 94/V0
Contacts Brass, gold-plated
Seals FPM/EPDM
Clamping ring Brass, nickel-plated / PA modif., 30% Gf.

+ +
Crimping tools and inserts  Page 818
