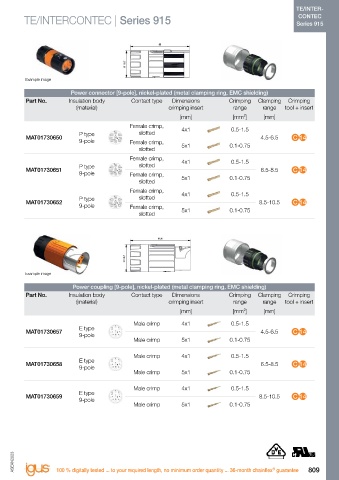

Page 815 - ASEAN Chainflex Catalogue 2023

TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series 915 TE/INTERCONTEC | Series 915 CONTEC
Series 915 Series 915

Example image Example image

Power connector [9-pole], nickel-plated (plastic clamping ring, EMC shielding) Power connector [9-pole], nickel-plated (metal clamping ring, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
(material) crimping insert range range tool + insert (material) crimping insert range range tool + insert
[mm] [mm²] [mm] [mm] [mm²] [mm]
Female crimp, 4x1 0.5-1.5 Female crimp, 4x1 0.5-1.5
P type slotted P type slotted
MAT01730647 4.5-6.5 C 14 MAT01730650 4.5-6.5 C 14

9-pole Female crimp, 9-pole Female crimp,
slotted 5x1 0.1-0.75 slotted 5x1 0.1-0.75
Female crimp, 4x1 0.5-1.5 Female crimp, 4x1 0.5-1.5
P type slotted P type slotted
MAT01730648 6.5-8.5 C 14 MAT01730651 6.5-8.5 C 14

9-pole Female crimp, 9-pole Female crimp,
slotted 5x1 0.1-0.75 slotted 5x1 0.1-0.75
Female crimp, 4x1 0.5-1.5 Female crimp, 4x1 0.5-1.5
P type slotted P type slotted
MAT01730649 8.5-10.5 C 14 MAT01730652 8.5-10.5 C 14

9-pole Female crimp, 9-pole Female crimp,
slotted 5x1 0.1-0.75 slotted 5x1 0.1-0.75

Example image Example image

Power coupling [9-pole], (plastic clamping ring, EMC shielding) Power coupling [9-pole], nickel-plated (metal clamping ring, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
(material) crimping insert range range tool + insert (material) crimping insert range range tool + insert
[mm] [mm²] [mm] [mm] [mm²] [mm]

Male crimp 4x1 0.5-1.5 Male crimp 4x1 0.5-1.5
E type E type
MAT01730654 4.5-6.5 C 14 MAT01730657 4.5-6.5 C 14

9-pole 9-pole
Male crimp 5x1 0.1-0.75 Male crimp 5x1 0.1-0.75
Male crimp 4x1 0.5-1.5 Male crimp 4x1 0.5-1.5
E type E type
MAT01730655 6.5-8.5 C 14 MAT01730658 6.5-8.5 C 14

9-pole 9-pole
Male crimp 5x1 0.1-0.75 Male crimp 5x1 0.1-0.75
Male crimp 4x1 0.5-1.5 Male crimp 4x1 0.5-1.5
E type E type
MAT01730656 8.5-10.5 C 14 MAT01730659 8.5-10.5 C 14

9-pole 9-pole
Male crimp 5x1 0.1-0.75 Male crimp 5x1 0.1-0.75

+ +
Crimping tools and inserts  Page 818

808 EPLAN download, configurators  www.igus-asean.com/readycable ASEAN2023 ASEAN2023 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 809
®
