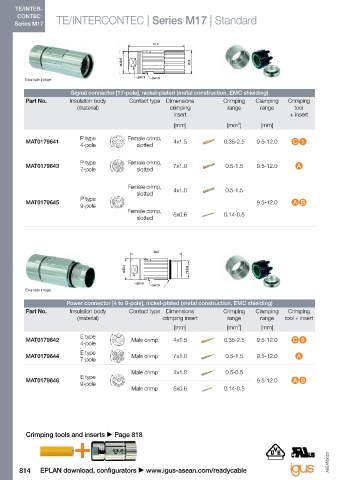

Page 820 - ASEAN Chainflex Catalogue 2023

TE/INTER- TE/INTER-
CONTEC TE/INTERCONTEC | Series M17 | Standard TE/INTERCONTEC | Series M17 | Speedtec CONTEC
Series M17 Series M17

Example image Example image

Signal connector [17-pole], nickel-plated (metal construction, EMC shielding) Signal connector [17-pole], nickel-plated (metal construction, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
(material) crimping range range tool (material) crimping range range tool
insert + insert insert + insert

[mm] [mm²] [mm] [mm] [mm²] [mm]

P type Female crimp, P type Female crimp,
MAT0179641 4x1.5 0.35-2.5 9.5-12.0 C 1 MAT01723495 4x1.5 0.35-2.5 9.5-12.0 C 1

4-pole slotted 4-pole slotted
P type Female crimp, P type Female crimp,
MAT0179643 7x1.0 0.5-1.5 9.5-12.0 A MAT01723497 7x1.0 0.5-1.5 9.5-12.0 A
7-pole slotted 7-pole slotted

Female crimp, 4x1.0 0.5-1.5 Female crimp, 4x1.0 0.5-1.5
slotted slotted
P type P type
MAT0179645 9.5-12.0 A B MAT01723499 9.5-12.0 A B

9-pole 9-pole
Female crimp, 5x0.6 0.14-0.5 Female crimp, 5x0.6 0.14-0.5
slotted slotted

Example image Example image

Power connector [4 to 9-pole], nickel-plated (metal construction, EMC shielding) Power connector [4 to 9-pole], nickel-plated (metal construction, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
(material) crimping insert range range tool + insert (material) crimping insert range range tool + insert
[mm] [mm²] [mm] [mm] [mm²] [mm]
E type E type
MAT0179642 Male crimp 4x1.5 0.35-2.5 9.5-12.0 C 6 MAT01723496 Male crimp 4x1.5 0.35-2.5 9.5-12.0 C 6

4-pole 4-pole
E type E type
MAT0179644 Male crimp 7x1.0 0.5-1.5 9.5-12.0 A MAT01723498 Male crimp 7x1.0 0.5-1.5 9.5-12.0 A
7-pole 7-pole
Male crimp 4x1.0 0.5-0.5 Male crimp 4x1.0 0.5-1.5
E type E type
MAT0179646 9.5-12.0 A B MAT01723500 9.5-12.0 A B

9-pole 9-pole
Male crimp 5x0.6 0.14-0.5 Male crimp 5x0.6 0.14-0.5

+
Crimping tools and inserts  Page 818 Crimping tools and inserts  Page 818
