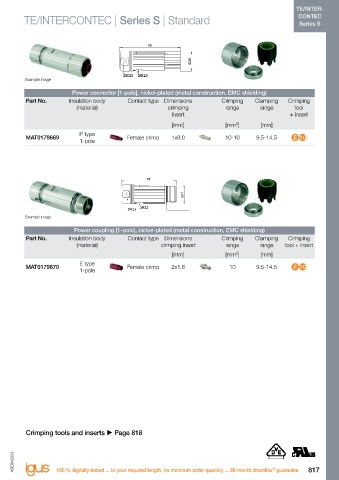

Power connectors series S, M23 [1-pole]

Types
z Connector
z Coupling Example image
z Straight installation box with flange
Power connector [1-pole], nickel-plated (metal construction, EMC shielding)
Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
tool
Number of poles in insulation body (material) crimping range range + insert
insert
z 1
[mm] [mm²] [mm]
P type
MAT0179669 Female crimp 1x8.0 10-10 9.5-14.5 E 10

Electrical information 1-pole
Design Power
Max. continuous nominal current 80A
Nominal voltage (AC/DC) 630V
Testing voltage 8,000V
Contact resistance < 110mΩ
Insertion cycles > 50

Technical data Example image
Locking Thread M23
Temperature range -20°C up to +130°C Power coupling [1-pole], nickel-plated (metal construction, EMC shielding)
Cable clamp Crown clamp Part No. Insulation body Contact type Dimensions Crimping Clamping Crimping
Protection class IP 66/67 [plugged] (material) crimping insert range range tool + insert
[mm] [mm²] [mm]
Data according to VDE 0110/EN 61984, Clause 6.19.2.2 MAT0179670 E type Female crimp 2x1.6 10 9.5-14.5 E 10

Pollution degree 3 [2] 1-pole
Over-voltage category IV
Max. installation height 2000m

Connector materials
Housing Zinc die-casting/brass, nickel-plated
Coupling nut Brass, nickel-plated
Insulation body (material) PA 6.6 mod., UL 94/V0
Contacts Brass, silver-plated
Seals FPM
Clamping ring Brass, nickel-plated

+ Crimping tools and inserts  Page 818
