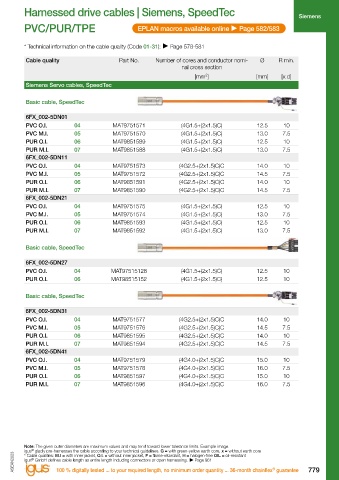

Page 785 - ASEAN Chainflex Catalogue 2023
P. 785
Harnessed drive cables | Siemens, SpeedTec Harnessed drive cables | Siemens, SpeedTec
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Servo cables, SpeedTec Siemens Servo cables, SpeedTec
Basic cable, SpeedTec Basic cable, SpeedTec
6FX_002-5DG10 6FX_002-5DN01
PVC O.I. 04 MAT9751589 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751571 (4G1.5+(2x1.5)C) 12.5 10
PVC M.I. 05 MAT9751588 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9751570 (4G1.5+(2x1.5)C) 13.0 7.5
PUR O.I. 06 MAT98515107 (4G1.5+(2x1.5)C) 12.5 10 PUR O.I. 06 MAT9851589 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT98515106 (4G1.5+(2x1.5)C) 13.0 7.5 PUR M.I. 07 MAT9851588 (4G1.5+(2x1.5)C) 13.0 7.5
6FX_002-5DG12 6FX_002-5DN11
PVC O.I. 04 MAT9751593 (4G2.5+(2x1.5)C)C 14.0 10 PVC O.I. 04 MAT9751573 (4G2.5+(2x1.5)C)C 14.0 10
PVC M.I. 05 MAT9751592 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9751572 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT98515111 (4G2.5+(2x1.5)C)C 14.0 10 PUR O.I. 06 MAT9851591 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT98515110 (4G2.5+(2x1.5)C)C 14.5 7.5 PUR M.I. 07 MAT9851590 (4G2.5+(2x1.5)C)C 14.5 7.5
6FX_002-5DG22 6FX_002-5DN21
PVC O.I. 04 MAT9751591 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 04 MAT9751575 (4G1.5+(2x1.5)C) 12.5 10
PVC M.I. 05 MAT9751590 (4G1.5+(2x1.5)C) 13.0 7.5 PVC M.I. 05 MAT9751574 (4G1.5+(2x1.5)C) 13.0 7.5
PUR O.I. 06 MAT98515109 (4G1.5+(2x1.5)C) 12.5 10 PUR O.I. 06 MAT9851593 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT98515108 (4G1.5+(2x1.5)C) 13.0 7.5 PUR M.I. 07 MAT9851592 (4G1.5+(2x1.5)C) 13.0 7.5
6FX_002-5DG32
PVC O.I. 04 MAT9751595 (4G2.5+(2x1.5)C)C 14.0 10 Basic cable, SpeedTec
PVC M.I. 05 MAT9751594 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT98515113 (4G2.5+(2x1.5)C)C 14.0 10 6FX_002-5DN27
PUR M.I. 07 MAT98515112 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC O.I. 04 MAT97515128 (4G1.5+(2x1.5)C) 12.5 10
6FX_002-5DG42 PUR O.I. 06 MAT98515152 (4G1.5+(2x1.5)C) 12.5 10
PVC O.I. 04 MAT9751597 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT9751596 (4G4.0+(2x1.5)C)C 16.0 7.5 Basic cable, SpeedTec
PUR O.I. 06 MAT98515115 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT98515114 (4G4.0+(2x1.5)C)C 16.0 7.5 6FX_002-5DN31
6FX_002-5DG52 PVC O.I. 04 MAT9751577 (4G2.5+(2x1.5)C)C 14.0 10
PVC O.I. 04 MAT9751599 (4G6.0+(2x1.5)C)C 16.5 10 PVC M.I. 05 MAT9751576 (4G2.5+(2x1.5)C)C 14.5 7.5
PVC M.I. 05 MAT9751598 (4G6.0+(2x1.5)C)C 18.0 7.5 PUR O.I. 06 MAT9851595 (4G2.5+(2x1.5)C)C 14.0 10
PUR O.I. 06 MAT98515117 (4G6.0+(2x1.5)C)C 16.5 10 PUR M.I. 07 MAT9851594 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR M.I. 07 MAT98515116 (4G6.0+(2x1.5)C)C 17.5 7.5 6FX_002-5DN41
6FX_002-5DG62 PVC O.I. 04 MAT9751579 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT97515100 (4G10+(2x1.5)C)C 21.5 7.5 PVC M.I. 05 MAT9751578 (4G4.0+(2x1.5)C)C 16.0 7.5
PUR O.I. 06 MAT98515119 (4G10+(2x1.5)C)C 21.0 10 PUR O.I. 06 MAT9851597 (4G4.0+(2x1.5)C)C 15.0 10
PUR M.I. 07 MAT98515118 (4G10+(2x1.5)C)C 21.0 7.5 PUR M.I. 07 MAT9851596 (4G4.0+(2x1.5)C)C 16.0 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
®
778 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 779
®
