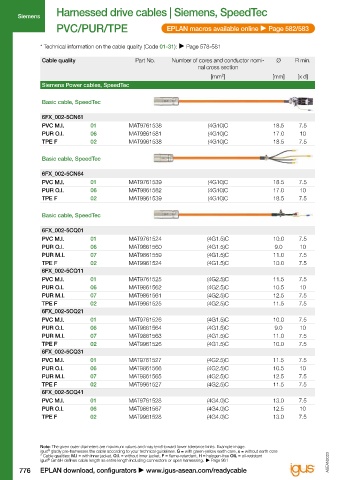

Page 782 - ASEAN Chainflex Catalogue 2023
P. 782
Harnessed drive cables | Siemens, SpeedTec Harnessed drive cables | Siemens, SpeedTec
Siemens Siemens
PVC/PUR/TPE EPLAN macros available online Page 582/583 PVC/PUR/TPE EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Power cables, SpeedTec Siemens Power cables, SpeedTec
6FX_002-5CQ51
Basic cable, SpeedTec PVC M.I. 01 MAT9761529 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9861568 (4G6.0)C 14.5 10
6FX_002-5CN61 TPE F 02 MAT9961529 (4G6.0)C 16.0 7.5
PVC M.I. 01 MAT9761538 (4G10)C 18.5 7.5 6FX_002-5CQ61
PUR O.I. 06 MAT9861581 (4G10)C 17.0 10 PVC M.I. 01 MAT9761530 (4G10)C 18.5 7.5
TPE F 02 MAT9961538 (4G10)C 18.5 7.5 PUR O.I. 06 MAT9861569 (4G10)C 17.0 10
TPE F 02 MAT9961530 (4G10)C 18.5 7.5
Basic cable, SpeedTec
Extension cable, SpeedTec
6FX_002-5CN64
PVC M.I. 01 MAT9761539 (4G10)C 18.5 7.5 6FX_002-5CN05
PUR O.I. 06 MAT9861582 (4G10)C 17.0 10 PVC M.I. 01 MAT9761522 (4G1.5)C 10.0 7.5
TPE F 02 MAT9961539 (4G10)C 18.5 7.5 PUR O.I. 06 MAT9861556 (4G1.5)C 9.0 10
PUR M.I. 07 MAT9861555 (4G1.5)C 11.0 7.5
Basic cable, SpeedTec TPE F 02 MAT9961522 (4G1.5)C 10.0 7.5
6FX_002-5CQ15
6FX_002-5CQ01 PVC M.I. 01 MAT9761523 (4G2.5)C 11.5 7.5
PVC M.I. 01 MAT9761524 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9861558 (4G2.5)C 10.5 10
PUR O.I. 06 MAT9861560 (4G1.5)C 9.0 10 PUR M.I. 07 MAT9861557 (4G2.5)C 12.5 7.5
PUR M.I. 07 MAT9861559 (4G1.5)C 11.0 7.5 TPE F 02 MAT9961523 (4G2.5)C 11.5 7.5
TPE F 02 MAT9961524 (4G1.5)C 10.0 7.5 6FX_002-5CQ28
6FX_002-5CQ11 PVC M.I. 01 MAT9761547 (4G1.5)C 10.0 7.5
PVC M.I. 01 MAT9761525 (4G2.5)C 11.5 7.5 PUR O.I. 06 MAT9861595 (4G1.5)C 9.0 10
PUR O.I. 06 MAT9861562 (4G2.5)C 10.5 10 PUR M.I. 07 MAT9861594 (4G1.5)C 11.0 7.5
PUR M.I. 07 MAT9861561 (4G2.5)C 12.5 7.5 TPE F 02 MAT9961547 (4G1.5)C 10.0 7.5
TPE F 02 MAT9961525 (4G2.5)C 11.5 7.5 6FX_002-5CQ38
6FX_002-5CQ21 PVC M.I. 01 MAT9761548 (4G2.5)C 11.5 7.5
PVC M.I. 01 MAT9761526 (4G1.5)C 10.0 7.5 PUR O.I. 06 MAT9861597 (4G2.5)C 10.5 10
PUR O.I. 06 MAT9861564 (4G1.5)C 9.0 10 PUR M.I. 07 MAT9861596 (4G2.5)C 12.5 7.5
PUR M.I. 07 MAT9861563 (4G1.5)C 11.0 7.5 TPE F 02 MAT9961548 (4G2.5)C 11.5 7.5
TPE F 02 MAT9961526 (4G1.5)C 10.0 7.5 6FX_002-5CQ48
6FX_002-5CQ31 PVC M.I. 01 MAT9761549 (4G4.0)C 13.0 7.5
PVC M.I. 01 MAT9761527 (4G2.5)C 11.5 7.5 PUR O.I. 06 MAT9861598 (4G4.0)C 12.5 10
PUR O.I. 06 MAT9861566 (4G2.5)C 10.5 10 TPE F 02 MAT9961549 (4G4.0)C 13.0 7.5
PUR M.I. 07 MAT9861565 (4G2.5)C 12.5 7.5 6FX_002-5CQ58
TPE F 02 MAT9961527 (4G2.5)C 11.5 7.5 PVC M.I. 01 MAT9761550 (4G6.0)C 16.0 7.5
6FX_002-5CQ41 PUR O.I. 06 MAT9861599 (4G6.0)C 14.5 10
PVC M.I. 01 MAT9761528 (4G4.0)C 13.0 7.5 TPE F 02 MAT9961550 (4G6.0)C 16.0 7.5
PUR O.I. 06 MAT9861567 (4G4.0)C 12.5 10 6FX_002-5CQ68
TPE F 02 MAT9961528 (4G4.0)C 13.0 7.5 PVC M.I. 01 MAT9761551 (4G10)C 18.5 7.5
PUR O.I. 06 MAT98615100 (4G10)C 17.0 10
TPE F 02 MAT9961551 (4G10)C 18.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
