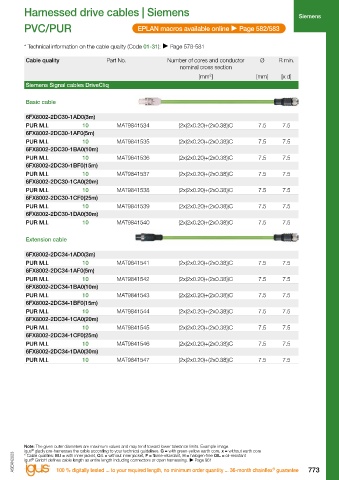

Page 779 - ASEAN Chainflex Catalogue 2023
P. 779
Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor Ø R min.
nal cross section nominal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Signal cables Siemens Signal cables DriveCliq
Extension cable Basic cable
6FX_002-2CB34 6FX8002-2DC30-1AD0(3m)
PUR 13 MAT9841525 (14x0.25)C 8.0 10 PUR M.I. 10 MAT9841534 (2x(2x0.20)+(2x0.38))C 7.5 7.5
TPE H* 24 MAT9071007 (12x0.25)C 9.5 5 6FX8002-2DC30-1AF0(5m)
6FX_002-2CB54 PUR M.I. 10 MAT9841535 (2x(2x0.20)+(2x0.38))C 7.5 7.5
PVC 08 MAT9171002 (4x(2x0.34)+4x0.5)C 9.5 10 6FX8002-2DC30-1BA0(10m)
PUR M.I. 10 MAT9841521 (4x(2x0.34)+4x0.5)C 10.0 7.5 PUR M.I. 10 MAT9841536 (2x(2x0.20)+(2x0.38))C 7.5 7.5
TPE H* 11 MAT9071002 (4x(2x0.34)+4x0.5)C 10.0 6.8 6FX8002-2DC30-1BF0(15m)
PUR M.I. 10 MAT9841537 (2x(2x0.20)+(2x0.38))C 7.5 7.5
Extension cable 6FX8002-2DC30-1CA0(20m)
PUR M.I. 10 MAT9841538 (2x(2x0.20)+(2x0.38))C 7.5 7.5
6FX_002-2CC14 6FX8002-2DC30-1CF0(25m)
PVC 08 MAT9171009 (4x(2x0.34)+4x0.5)C 9.5 10 PUR M.I. 10 MAT9841539 (2x(2x0.20)+(2x0.38))C 7.5 7.5
PUR M.I. 10 MAT9841526 (4x(2x0.34)+4x0.5)C 10.0 7.5 6FX8002-2DC30-1DA0(30m)
TPE H* 11 MAT9071009 (4x(2x0.34)+4x0.5)C 10.0 6.8 PUR M.I. 10 MAT9841540 (2x(2x0.20)+(2x0.38))C 7.5 7.5
6FX_002-2CF04
PVC 08 MAT9171011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10 Extension cable
PUR M.I. 10 MAT9841527 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5
TPE H* 11 MAT9071011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8 6FX8002-2DC34-1AD0(3m)
PUR M.I. 10 MAT9841541 (2x(2x0.20)+(2x0.38))C 7.5 7.5
Extension cable 6FX8002-2DC34-1AF0(5m)
PUR M.I. 10 MAT9841542 (2x(2x0.20)+(2x0.38))C 7.5 7.5
6FX_002-2DC20 6FX8002-2DC34-1BA0(10m)
PVC 08 MAT9741505 (2x(2x0.15)+(2x0.38))C 7.5 10 PUR M.I. 10 MAT9841543 (2x(2x0.20)+(2x0.38))C 7.5 7.5
PUR O.I. 09 MAT9841531 (2x(2x0.15)+(2x0.38))C 7.5 10 6FX8002-2DC34-1BF0(15m)
PUR M.I. 10 MAT9070031 (2x(2x0.20)+(2x0.38))C 7.5 7.5 PUR M.I. 10 MAT9841544 (2x(2x0.20)+(2x0.38))C 7.5 7.5
6FX8002-2DC34-1CA0(20m)
Extension cable PUR M.I. 10 MAT9841545 (2x(2x0.20)+(2x0.38))C 7.5 7.5
6FX8002-2DC34-1CF0(25m)
6FX_002-2EQ14 PUR M.I. 10 MAT9841546 (2x(2x0.20)+(2x0.38))C 7.5 7.5
PVC 08 MAT9171017 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.0 10 6FX8002-2DC34-1DA0(30m)
PUR M.I. 10 MAT9841528 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 11.0 7.5 PUR M.I. 10 MAT9841547 (2x(2x0.20)+(2x0.38))C 7.5 7.5
TPE H* 11 MAT9071017 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.5 6.8
EPLAN macros suitable for Siemens
available online
Can be used directly in CAE planning.
Learn more about it on page 582/583 and online: www.igus-asean.com/eplan-macro
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
