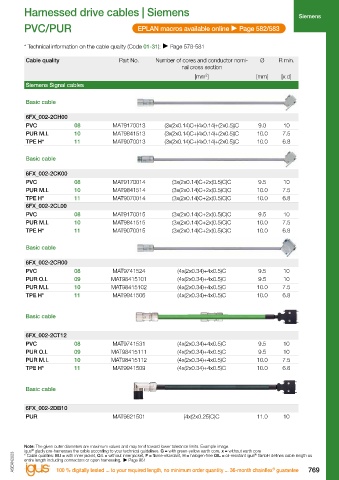

Page 775 - ASEAN Chainflex Catalogue 2023

Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR EPLAN macros available online  Page 582/583 PVC/PUR EPLAN macros available online  Page 582/583

* Technical information on the cable quality (Code 01-31):  Page 578-581 * Technical information on the cable quality (Code 01-31):  Page 578-581

Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Signal cables Siemens Signal cables

Basic cable Basic cable

6FX_002-2CA71 6FX_002-2CH00
PVC 08 MAT9170006 (4x(2x0.34)+4x0.5)C 9.5 10 PVC 08 MAT9170013 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10
PUR M.I. 10 MAT9841506 (4x(2x0.34)+4x0.5)C 10.0 7.5 PUR M.I. 10 MAT9841513 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5
TPE H* 11 MAT9070006 (4x(2x0.34)+4x0.5)C 10.0 6.8 TPE H* 11 MAT9070013 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8

Basic cable Basic cable

6FX_002-2CB31 6FX_002-2CK00
PUR 13 MAT9841507 (14x0.25)C 8.0 10 PVC 08 MAT9170014 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
TPE H* 24 MAT9070007 (12x0.25)C 9.5 5 PUR M.I. 10 MAT9841514 (3x(2x0.14)C+2x(0.5)C)C 10.0 7.5
6FX_002-2CB51 TPE H* 11 MAT9070014 (3x(2x0.14)C+2x(0.5)C)C 10.0 6.8
PVC 08 MAT9170008 (4x(2x0.34)+4x0.5)C 9.5 10 6FX_002-2CL00
PUR M.I. 10 MAT9841508 (4x(2x0.34)+4x0.5)C 10.0 7.5 PVC 08 MAT9170015 (3x(2x0.14)C+2x(0.5)C)C 9.5 10
TPE H* 11 MAT9070008 (4x(2x0.34)+4x0.5)C 10.0 6.8 PUR M.I. 10 MAT9841515 (3x(2x0.14)C+2x(0.5)C)C 10.0 7.5
6FX_002-2CC11 TPE H* 11 MAT9070015 (3x(2x0.14)C+2x(0.5)C)C 10.0 6.8
PVC 08 MAT9170009 (4x(2x0.34)+4x0.5)C 9.5 10
PUR M.I. 10 MAT9841509 (4x(2x0.34)+4x0.5)C 10.0 7.5 Basic cable
TPE H* 11 MAT9070009 (4x(2x0.34)+4x0.5)C 10.0 6.8
6FX_002-2CD01 6FX_002-2CR00
PVC 08 MAT9170010 (4x(2x0.34)+4x0.5)C 9.5 10 PVC 08 MAT9741524 (4x(2x0.34)+4x0.5)C 9.5 10
PUR M.I. 10 MAT9841510 (4x(2x0.34)+4x0.5)C 10.0 7.5 PUR O.I. 09 MAT98415101 (4x(2x0.34)+4x0.5)C 9.5 10
TPE H* 11 MAT9070010 (4x(2x0.34)+4x0.5)C 10.0 6.8 PUR M.I. 10 MAT98415102 (4x(2x0.34)+4x0.5)C 10.0 7.5
TPE H* 11 MAT9941506 (4x(2x0.34)+4x0.5)C 10.0 6.8
Basic cable

6FX_002-2CF01 Basic cable
PVC 08 MAT9170021 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10
PUR M.I. 10 MAT9841519 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5 6FX_002-2CT12
TPE H* 11 MAT9070021 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8 PVC 08 MAT9741531 (4x(2x0.34)+4x0.5)C 9.5 10
6FX_002-2CF02 PUR O.I. 09 MAT98415111 (4x(2x0.34)+4x0.5)C 9.5 10
PVC 08 MAT9170011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10 PUR M.I. 10 MAT98415112 (4x(2x0.34)+4x0.5)C 10.0 7.5
PUR M.I. 10 MAT9841511 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5 TPE H* 11 MAT9941509 (4x(2x0.34)+4x0.5)C 10.0 6.8
TPE H* 11 MAT9070011 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8
6FX_002-2CG00
PVC 08 MAT9170012 (4x(2x0.34)+4x0.5)C 9.5 10 Basic cable
PUR M.I. 10 MAT9841512 (4x(2x0.34)+4x0.5)C 10.0 7.5
TPE H* 11 MAT9070012 (4x(2x0.34)+4x0.5)C 10.0 6.8 6FX_002-2DB10
PUR MAT9821501 (4x(2x0.25)C)C 11.0 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant igus GmbH defines cable length as
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 entire length including connectors or open harnessing. Page 961
®
768 EPLAN download, configurators  www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 769
®
