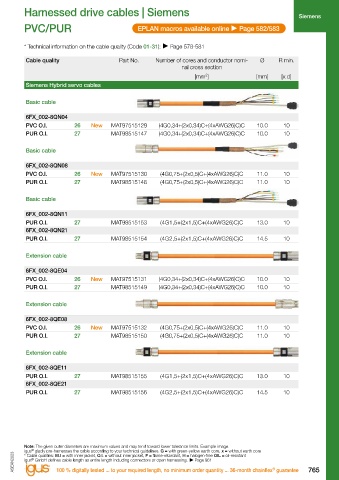

Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Servo cables Siemens Hybrid servo cables
Extension cable Basic cable
6FX_002-5DA28 6FX_002-8QN04
PVC O.I. 04 MAT9751511 (4G1.5+(2x1.5)C) 12.5 10 PVC O.I. 26 New MAT97515129 (4G0,34+(2x0,34)C+(4xAWG26)C)C 10.0 10
PVC M.I. 05 MAT9161003 (4G1.5+(2x1.5)C) 13.0 7.5 PUR O.I. 27 MAT98515147 (4G0,34+(2x0,34)C+(4xAWG26)C)C 10.0 10
PUR O.I. 06 MAT9851514 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9061003 (4G1.5+(2x1.5)C) 13.0 7.5 Basic cable
6FX_002-5DA38
PVC O.I. 04 MAT9751512 (4G2.5+(2x1.5)C)C 14.0 10 6FX_002-8QN08
PVC M.I. 05 MAT9161004 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC O.I. 26 New MAT97515130 (4G0,75+(2x0,5)C+(4xAWG26)C)C 11.0 10
PUR O.I. 06 MAT9851515 (4G2.5+(2x1.5)C)C 14.0 10 PUR O.I. 27 MAT98515148 (4G0,75+(2x0,5)C+(4xAWG26)C)C 11.0 10
PUR M.I. 07 MAT9061004 (4G2.5+(2x1.5)C)C 14.5 7.5
6FX_002-5DA48 Basic cable
PVC O.I. 04 MAT9751513 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT9161005 (4G4.0+(2x1.5)C)C 16.0 7.5 6FX_002-8QN11
PUR O.I. 06 MAT9851516 (4G4.0+(2x1.5)C)C 15.0 10 PUR O.I. 27 MAT98515153 (4G1,5+(2x1,5)C+(4xAWG26)C)C 13.0 10
PUR M.I. 07 MAT9061005 (4G4.0+(2x1.5)C)C 16.0 7.5 6FX_002-8QN21
PUR O.I. 27 MAT98515154 (4G2,5+(2x1,5)C+(4xAWG26)C)C 14.5 10
Extension cable
Extension cable
6FX_002-5DA58
PVC O.I. 04 MAT9751514 (4G6.0+(2x1.5)C)C 16.5 10 6FX_002-8QE04
PVC M.I. 05 MAT9161006 (4G6.0+(2x1.5)C)C 18.0 7.5 PVC O.I. 26 New MAT97515131 (4G0,34+(2x0,34)C+(4xAWG26)C)C 10.0 10
PUR O.I. 06 MAT9851517 (4G6.0+(2x1.5)C)C 16.5 10 PUR O.I. 27 MAT98515149 (4G0,34+(2x0,34)C+(4xAWG26)C)C 10.0 10
PUR M.I. 07 MAT9061006 (4G6.0+(2x1.5)C)C 17.5 7.5
6FX_002-5DA68 Extension cable
PVC M.I. 05 MAT9161007 (4G10+(2x1.5)C)C 21.5 7.5
PUR O.I. 06 MAT9851518 (4G10+(2x1.5)C)C 21.0 10 6FX_002-8QE08
PUR M.I. 07 MAT9061007 (4G10+(2x1.5)C)C 21.0 7.5 PVC O.I. 26 New MAT97515132 (4G0,75+(2x0,5)C+(4xAWG26)C)C 11.0 10
PUR O.I. 27 MAT98515150 (4G0,75+(2x0,5)C+(4xAWG26)C)C 11.0 10
Extension cable
Extension cable
6FX_002-5DX18
PVC M.I. 05 MAT9161011 (4G10+(2x1.5)C)C 21.5 7.5 6FX_002-8QE11
PUR O.I. 06 MAT9851520 (4G10+(2x1.5)C)C 21.0 10 PUR O.I. 27 MAT98515155 (4G1,5+(2x1,5)C+(4xAWG26)C)C 13.0 10
PUR M.I. 07 MAT9061011 (4G10+(2x1.5)C)C 21.0 7.5 6FX_002-8QE21
6FX_002-5DX28 PUR O.I. 27 MAT98515156 (4G2,5+(2x1,5)C+(4xAWG26)C)C 14.5 10
PVC M.I. 05 MAT9161008 (4G16+(2x1.5)C)C 25.0 7.5
PUR O.I. 06 MAT9851519 (4G16+(2x1.5)C)C 24.0 10
PUR M.I. 07 MAT9061008 (4G16+(2x1.5)C)C 24.0 7.5
6FX_002-5DX38
PVC M.I. 05 MAT9161009 (4G25+(2x1.5)C)C 30.0 7.5
PUR M.I. 07 MAT9061009 (4G25+(2x1.5)C)C 28.0 7.5
6FX_002-5DX48 Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
®
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
PVC M.I. 05 MAT9161010 (4G35+(2x1.5)C)C 33.5 7.5 * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
PUR M.I. 07 MAT9061010 (4G35+(2x1.5)C)C 32.0 7.5 ASEAN2023 ASEAN2023
