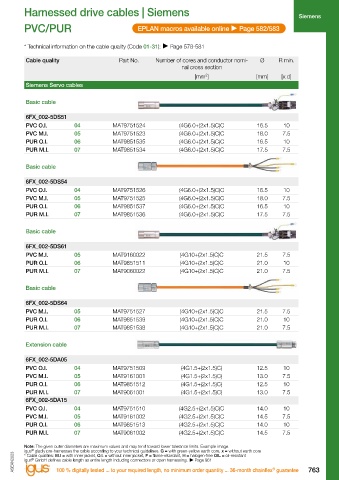

Page 769 - ASEAN Chainflex Catalogue 2023
P. 769
Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Servo cables Siemens Servo cables
Basic cable Basic cable
6FX_002-5DS13 6FX_002-5DS51
PVC M.I. 05 MAT9751517 (4G10+(2x1.5)C)C 21.5 7.5 PVC O.I. 04 MAT9751524 (4G6.0+(2x1.5)C)C 16.5 10
PUR O.I. 06 MAT9851525 (4G10+(2x1.5)C)C 21.0 10 PVC M.I. 05 MAT9751523 (4G6.0+(2x1.5)C)C 18.0 7.5
PUR M.I. 07 MAT9851524 (4G10+(2x1.5)C)C 21.0 7.5 PUR O.I. 06 MAT9851535 (4G6.0+(2x1.5)C)C 16.5 10
6FX_002-5DS21 PUR M.I. 07 MAT9851534 (4G6.0+(2x1.5)C)C 17.5 7.5
PVC O.I. 04 MAT9751508 (4G1.5+(2x1.5)C) 12.5 10
PVC M.I. 05 MAT9160021 (4G1.5+(2x1.5)C) 13.0 7.5 Basic cable
PUR O.I. 06 MAT9851510 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9060021 (4G1.5+(2x1.5)C) 13.0 7.5 6FX_002-5DS54
PVC O.I. 04 MAT9751526 (4G6.0+(2x1.5)C)C 16.5 10
Basic cable PVC M.I. 05 MAT9751525 (4G6.0+(2x1.5)C)C 18.0 7.5
PUR O.I. 06 MAT9851537 (4G6.0+(2x1.5)C)C 16.5 10
6FX_002-5DS23 PUR M.I. 07 MAT9851536 (4G6.0+(2x1.5)C)C 17.5 7.5
PUR O.I. 06 MAT9851527 (4G16+(2x1.5)C)C 24.0 10
PUR M.I. 07 MAT9851526 (4G16+(2x1.5)C)C 24.0 7.5 Basic cable
6FX_002-5DS33
PUR M.I. 07 MAT9851532 (4G25+(2x1.5)C)C 28.0 7.5 6FX_002-5DS61
PVC M.I. 05 MAT9160022 (4G10+(2x1.5)C)C 21.5 7.5
Basic cable PUR O.I. 06 MAT9851511 (4G10+(2x1.5)C)C 21.0 10
PUR M.I. 07 MAT9060022 (4G10+(2x1.5)C)C 21.0 7.5
6FX_002-5DS36
PVC O.I. 04 MAT97515107 (4G2.5+(2x1.5)C)C 14.0 10 Basic cable
PVC M.I. 05 MAT97515106 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT98515127 (4G2.5+(2x1.5)C)C 14.0 10 6FX_002-5DS64
PUR M.I. 07 MAT98515126 (4G2.5+(2x1.5)C)C 14.5 7.5 PVC M.I. 05 MAT9751527 (4G10+(2x1.5)C)C 21.5 7.5
PUR O.I. 06 MAT9851539 (4G10+(2x1.5)C)C 21.0 10
Basic cable PUR M.I. 07 MAT9851538 (4G10+(2x1.5)C)C 21.0 7.5
6FX_002-5DS41 Extension cable
PVC O.I. 04 MAT9751522 (4G4.0+(2x1.5)C)C 15.0 10
PVC M.I. 05 MAT9751521 (4G4.0+(2x1.5)C)C 16.0 7.5 6FX_002-5DA05
PUR O.I. 06 MAT9851531 (4G4.0+(2x1.5)C)C 15.0 10 PVC O.I. 04 MAT9751509 (4G1.5+(2x1.5)C) 12.5 10
PUR M.I. 07 MAT9851530 (4G4.0+(2x1.5)C)C 16.0 7.5 PVC M.I. 05 MAT9161001 (4G1.5+(2x1.5)C) 13.0 7.5
PUR O.I. 06 MAT9851512 (4G1.5+(2x1.5)C) 12.5 10
Basic cable PUR M.I. 07 MAT9061001 (4G1.5+(2x1.5)C) 13.0 7.5
6FX_002-5DA15
6FX_002-5DS43 PVC O.I. 04 MAT9751510 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT9851533 (4G35+(2x1.5)C)C 32.0 7.5 PVC M.I. 05 MAT9161002 (4G2.5+(2x1.5)C)C 14.5 7.5
PUR O.I. 06 MAT9851513 (4G2.5+(2x1.5)C)C 14.0 10
PUR M.I. 07 MAT9061002 (4G2.5+(2x1.5)C)C 14.5 7.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant
®
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
762 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 763
®
