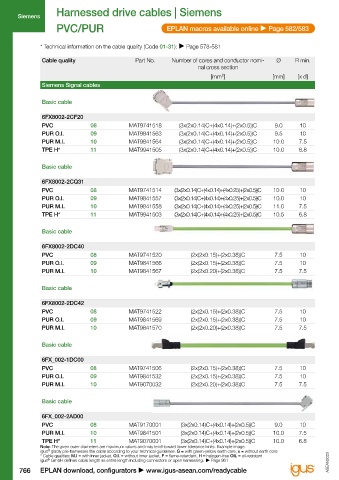

Page 772 - ASEAN Chainflex Catalogue 2023
P. 772
Harnessed drive cables | Siemens Harnessed drive cables | Siemens
Siemens Siemens
PVC/PUR EPLAN macros available online Page 582/583 PVC/PUR EPLAN macros available online Page 582/583
* Technical information on the cable quality (Code 01-31): Page 578-581 * Technical information on the cable quality (Code 01-31): Page 578-581
Cable quality Part No. Number of cores and conductor nomi- Ø R min. Cable quality Part No. Number of cores and conductor nomi- Ø R min.
nal cross section nal cross section
[mm²] [mm] [x d] [mm²] [mm] [x d]
Siemens Signal cables Siemens Signal cables
Basic cable Basic cable
6FX8002-2CF20 6FX_002-2AH00
PVC 08 MAT9741518 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10 PVC 08 MAT9170018 (4x(2x0.34)+4x0.5)C 9.5 10
PUR O.I. 09 MAT9841563 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.5 10 PUR M.I. 10 MAT9841518 (4x(2x0.34)+4x0.5)C 10.0 7.5
PUR M.I. 10 MAT9841564 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5 TPE H* 11 MAT9070018 (4x(2x0.34)+4x0.5)C 10.0 6.8
TPE H* 11 MAT9941505 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8
Basic cable
Basic cable
6FX_002-2AH11
6FX8002-2CQ31 PVC 08 MAT9741526 (4x(2x0.34)+4x0.5)C 9.5 10
PVC 08 MAT9741514 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.0 10 PUR O.I. 09 MAT98415104 (4x(2x0.34)+4x0.5)C 9.5 10
PUR O.I. 09 MAT9841557 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.0 10 PUR M.I. 10 MAT98415105 (4x(2x0.34)+4x0.5)C 10.0 7.5
PUR M.I. 10 MAT9841558 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 11.0 7.5 TPE H* 11 MAT9941507 (4x(2x0.34)+4x0.5)C 10.0 6.8
TPE H* 11 MAT9941503 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.5 6.8
Basic cable
Basic cable
6FX_002-2CA11
6FX8002-2DC40 PVC 08 MAT9170002 (4x(2x0.34)+4x0.5)C 9.5 10
PVC 08 MAT9741520 (2x(2x0.15)+(2x0.38))C 7.5 10 PUR M.I. 10 MAT9841502 (4x(2x0.34)+4x0.5)C 10.0 7.5
PUR O.I. 09 MAT9841566 (2x(2x0.15)+(2x0.38))C 7.5 10 TPE H* 11 MAT9070002 (4x(2x0.34)+4x0.5)C 10.0 6.8
PUR M.I. 10 MAT9841567 (2x(2x0.20)+(2x0.38))C 7.5 7.5
Basic cable
Basic cable
6FX_002-2CA15
6FX8002-2DC42 PVC 08 MAT9170003 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10
PVC 08 MAT9741522 (2x(2x0.15)+(2x0.38))C 7.5 10 PUR M.I. 10 MAT9841503 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5
PUR O.I. 09 MAT9841569 (2x(2x0.15)+(2x0.38))C 7.5 10 TPE H* 11 MAT9070003 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8
PUR M.I. 10 MAT9841570 (2x(2x0.20)+(2x0.38))C 7.5 7.5
Basic cable
Basic cable
6FX_002-2CA31
6FX_002-1DC00 PVC 08 MAT9170004 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.0 10
PVC 08 MAT9741506 (2x(2x0.15)+(2x0.38))C 7.5 10 PUR M.I. 10 MAT9841504 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 11.0 7.5
PUR O.I. 09 MAT9841532 (2x(2x0.15)+(2x0.38))C 7.5 10 TPE H* 11 MAT9070004 (3x(2x0.14)C+(4x0.14)+(4x0.25)+(2x0.5))C 10.5 6.8
PUR M.I. 10 MAT9070032 (2x(2x0.20)+(2x0.38))C 7.5 7.5
Basic cable
Basic cable
6FX_002-2CA51
6FX_002-2AD00 PVC 08 MAT9170005 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10
PVC 08 MAT9170001 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 9.0 10 PUR M.I. 10 MAT9841505 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5
PUR M.I. 10 MAT9841501 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 7.5 TPE H* 11 MAT9070005 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8
TPE H* 11 MAT9070001 (3x(2x0.14)C+(4x0.14)+(2x0.5))C 10.0 6.8
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Example image.
igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core igus gladly pre-harnesses the cable according to your technical guidelines. G = with green-yellow earth core, x = without earth core
®
®
®
* Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant * Cable qualities: M.I = with inner jacket, O.I. = without inner jacket, F = flame-retardant, H = halogen-free OIL = oil-resistant igus GmbH defines cable length as
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 ASEAN2023 ASEAN2023 entire length including connectors or open harnessing. Page 961
®
766 EPLAN download, configurators www.igus-asean.com/readycable 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 767
®
