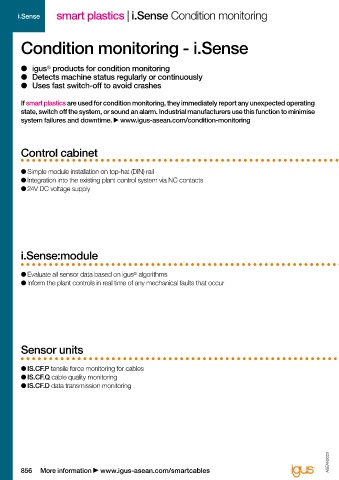

Condition monitoring - i.Sense i.Sense

Condition monitoring
®
● igus products for condition monitoring
● Detects machine status regularly or continuously
● Uses fast switch-off to avoid crashes

If smart plastics are used for condition monitoring, they immediately report any unexpected operating
state, switch off the system, or sound an alarm. Industrial manufacturers use this function to minimise
system failures and downtime. www.igus-asean.com/condition-monitoring

Control cabinet

● Simple module installation on top-hat (DIN) rail Condition Monitoring
● Integration into the existing plant control system via NC contacts The concept of condition monitoring is based on
● 24V DC voltage supply a regular or constant recording of the machine
condition by measuring and analysing physical
parameters, e.g. vibration, temperature, position/
proximity. Condition monitoring pursues two
goals: safety and machine efficiency. (Source:
Wikipedia)

i.Sense:module

®
● Evaluate all sensor data based on igus algorithms
● Inform the plant controls in real time of any mechanical faults that occur
i.Sense:module

Sensor units

● IS.CF.P tensile force monitoring for cables
● IS.CF.Q cable quality monitoring Sensor units
● IS.CF.D data transmission monitoring

CF.P CF.Q CF.D
