SERIES SERIES
HSK-M- HSK-M-

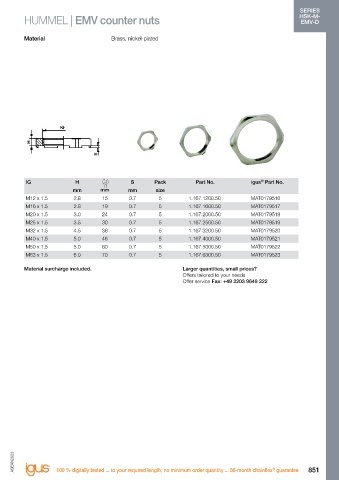

EMV-D HUMMEL | Cable glands HSK-M-EMV-D HUMMEL | EMV counter nuts EMV-D

Material Brass, nickel-plated Material Brass, nickel-plated
Clamping insert Metal-coated PA
Moulded seal NBR
O ring NBR
Protection class IP 68 – 10 bar / IP 69K
within the specified clamping range only
Continuous operating temperature -40°C – 100°C

®
®
AG GL H Pack Part No. igus Part No. IG H S Pack Part No. igus Part No.
mm mm mm mm size grey mm mm mm size
M12 x 1.5 3 - 6.5 6.5 25 14 5 1.631.1200.50 MAT0179524 M12 x 1.5 2.8 15 0.7 5 1.167.1200.50 MAT0179516
M16 x 1.5 5 - 10 6 32 20 5 1.631.1600.50 MAT0179525 M16 x 1.5 2.8 19 0.7 5 1.167.1600.50 MAT0179517
M20 x 1.5 10 - 14 6 33 24 5 1.631.2000.50 MAT0179526 M20 x 1.5 3.0 24 0.7 5 1.167.2000.50 MAT0179518
M25 x 1.5 13 - 18 7 39 30 5 1.631.2500.50 MAT0179527 M25 x 1.5 3.5 30 0.7 5 1.167.2500.50 MAT0179519
M32 x 1.5 18 - 25 8 45 40 5 1.631.3200.50 MAT0179528 M32 x 1.5 4.5 36 0.7 5 1.167.3200.50 MAT0179520
M40 x 1.5 24 - 32 8 51 50 5 1.631.4000.50 MAT0179529 M40 x 1.5 5.0 46 0.7 5 1.167.4000.50 MAT0179521
M50 x 1.5 32 - 38 9 57.5 57 5 1.631.5000.50 MAT0179530 M50 x 1.5 5.0 60 0.7 5 1.167.5000.50 MAT0179522
M63 x 1.5 37 - 44 10 52 64 / 68 5 1.631.6300.50 MAT0179531 M63 x 1.5 6.0 70 0.7 5 1.167.6300.50 MAT0179523

Material surcharge included. Larger quantities, small prices? Material surcharge included. Larger quantities, small prices?
Offers tailored to your needs Offers tailored to your needs
Offer service Fax: +49 2203 9649 222 Offer service Fax: +49 2203 9649 222

Cable diameter in mm
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

M12
M16
M20
M25
M32
M40
M50
M63
