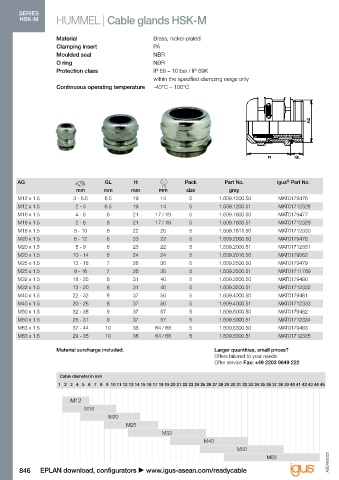

Page 852 - ASEAN Chainflex Catalogue 2023

SERIES SERIES
HSK-M HUMMEL | Cable glands HSK-M HUMMEL | M counter nuts HSK-M

Material Brass, nickel-plated Material Brass, nickel-plated
Clamping insert PA
Moulded seal NBR
O ring NBR
Protection class IP 68 – 10 bar / IP 69K
within the specified clamping range only
Continuous operating temperature -40°C – 100°C

®
®
AG GL H Pack Part No. igus Part No. IG H Pack Part No. igus Part No.
mm mm mm mm size grey mm mm size
M12 x 1.5 3 - 6.5 6.5 19 14 5 1.609.1200.50 MAT0179476 M12 x 1.5 2.8 15 5 1.161.1200.50 MAT0179484
M12 x 1.5 2 - 5 6.5 19 14 5 1.609.1200.51 MAT01712328 M16 x 1.5 2.8 19 5 1.161.1600.50 MAT0179485
M16 x 1.5 4 - 8 6 21 17 / 19 5 1.609.1600.50 MAT0179477 M20 x 1.5 3.0 23 5 1.161.2000.50 MAT0179486
M16 x 1.5 2 - 6 6 21 17 / 19 5 1.609.1600.51 MAT01712329 M25 x 1.5 3.5 29 5 1.161.2500.50 MAT017948
M16 x 1.5 5 - 10 6 22 20 5 1.609.1611.50 MAT01712330 M32 x 1.5 4.0 36 5 1.161.3200.50 MAT0179488
M20 x 1.5 6 - 12 6 23 22 5 1.609.2000.50 MAT0179478 M40 x 1.5 4.5 45 5 1.161.4000.50 MAT0179489
M20 x 1.5 5 - 9 6 23 22 5 1.609.2000.51 MAT01712331 M50 x 1.5 5.5 55 5 1.161.5000.50 MAT0179490
M20 x 1.5 10 - 14 6 24 24 5 1.609.2016.50 MAT0179562 M63 x 1.5 6.0 70 5 1.161.6300.50 MAT0179491
M25 x 1.5 13 - 18 7 26 30 5 1.609.2500.50 MAT0179479
M25 x 1.5 9 - 16 7 26 30 5 1.609.2500.51 MAT01711769 Material surcharge included. Larger quantities, small prices?
Offers tailored to your needs
M32 x 1.5 18 - 25 8 31 40 5 1.609.3200.50 MAT0179480 Offer service Fax: +49 2203 9649 222
M32 x 1.5 13 - 20 8 31 40 5 1.609.3200.51 MAT01712332
M40 x 1.5 22 - 32 8 37 50 5 1.609.4000.50 MAT0179481
M40 x 1.5 20 - 26 8 37 50 5 1.609.4000.51 MAT01712333
M50 x 1.5 32 - 38 9 37 57 5 1.609.5000.50 MAT0179482
M50 x 1.5 25 - 31 9 37 57 5 1.609.5000.51 MAT01712334
M63 x 1.5 37 - 44 10 38 64 / 68 5 1.609.6300.50 MAT0179483
M63 x 1.5 29 - 35 10 38 64 / 68 5 1.609.6300.51 MAT01712335

Material surcharge included. Larger quantities, small prices?
Offers tailored to your needs
Offer service Fax: +49 2203 9649 222

Cable diameter in mm
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

M12
M16
M20
M25
M32
M40
M50
M63 ASEAN2023 ASEAN2023
