BINDER BINDER
Connectors Connectors

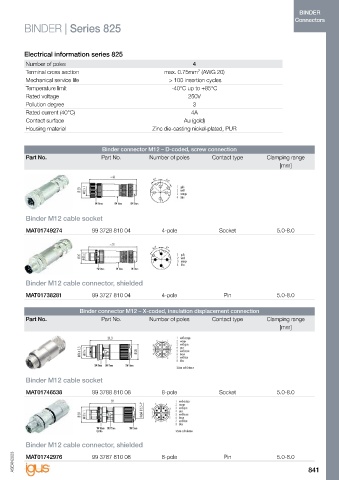

BINDER | Series 820 BINDER | Series 825

Electrical information series 820 Electrical information series 825
Number of poles 3+PE 4+PE Number of poles 4
2
2
Terminal cross section max. 1.5mm (AWG 16) max. 2.5mm (AWG14) Terminal cross section max. 0.75mm (AWG 20)
2
Mechanical service life > 100 insertion cycles > 50 insertion cycles Mechanical service life > 100 insertion cycles
Temperature limit –25°C up to +80°C –25°C up to +85°C Temperature limit -40°C up to +85°C
Rated voltage 300V (600V UL) Rated voltage 250V
Pollution degree 3 Pollution degree 3
Rated current (40°C) 9A Rated current (40°C) 4A
Contact surface Au (gold) Contact surface Au (gold)
Housing material PUR, PBT Housing material Zinc die-casting nickel-plated, PUR

Binder connector 7/8“, screw connection Binder connector M12 – D-coded, screw connection
Part No. Part No. Number of poles Contact type Clamping range Part No. Part No. Number of poles Contact type Clamping range
[mm] [mm]

Binder 7/8" cable socket Binder M12 cable socket

MAT01723423 99 2442 21 04 3+PE Socket 8.0-10.0 MAT01749274 99 3728 810 04 4-pole Socket 5.0-8.0
MAT01718734 99 2444 21 05 4+PE Socket 8.0-10.0

Binder M12 cable connector, shielded
Binder 7/8“ cable connector shielded
MAT01738281 99 3727 810 04 4-pole Pin 5.0-8.0
MAT01732663 99 2443 21 04 3+PE Pin 8.0-10.0
MAT01722513 99 2445 21 05 4+PE Pin 8.0-10.0 Binder connector M12 – X-coded, insulation displacement connection
Part No. Part No. Number of poles Contact type Clamping range
[mm]

Binder M12 cable socket

MAT01746538 99 3788 810 08 8-pole Socket 5.0-8.0

Binder M12 cable connector, shielded

ASEAN2023 ASEAN2023 MAT01742976 99 3787 810 08 8-pole Pin 5.0-8.0
