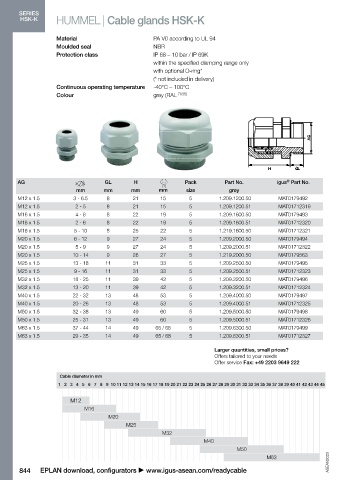

HSK-K HUMMEL | Cable glands HSK-K HUMMEL | K counter nuts HSK-K

Material PA V0 according to UL 94 Material SB / PA
Moulded seal NBR Continuous operating temperature -20°C – 40°C (SB)
Protection class IP 68 – 10 bar / IP 69K -40°C – 100°C (PA)
within the specified clamping range only Colour grey (RAL 7035)
with optional O-ring*
(* not included in delivery)
Continuous operating temperature -40°C – 100°C
Colour grey (RAL 7035)

®
®
AG GL H Pack Part No. igus Part No. IG H Pack Part No. igus Part No.
mm mm mm mm size grey mm mm size
M12 x 1.5 3 - 6.5 8 21 15 5 1.209.1200.50 MAT0179492 M12 x 1.5 5 17 5 1.262.1200.50 MAT0179500
M12 x 1.5 2 - 5 8 21 15 5 1.209.1200.51 MAT01712319 M16 x 1.5 5 22 5 1.262.1600.50 MAT0179501
M16 x 1.5 4 - 8 8 22 19 5 1.209.1600.50 MAT0179493 M20 x 1.5 6 27 5 1.262.2000.50 MAT0179502
M16 x 1.5 2 - 6 8 22 19 5 1.209.1600.51 MAT01712320 M25 x 1.5 7 36 5 1.262.2500.50 MAT0179503
M16 x 1.5 5 - 10 8 25 22 5 1.219.1600.50 MAT01712321 M32 x 1.5 7 41 5 1.262.3200.50 MAT0179504
M20 x 1.5 6 - 12 9 27 24 5 1.209.2000.50 MAT0179494 M40 x 1.5 7 50 5 1.262.4000.50 MAT0179505
M20 x 1.5 5 - 9 9 27 24 5 1.209.2000.51 MAT01712322 M50 x 1.5 8 60 5 1.262.5000.50 MAT0179506
M20 x 1.5 10 - 14 9 28 27 5 1.219.2000.50 MAT0179563 M63 x 1.5 8 75 5 1.262.6300.50 MAT0179507
M25 x 1.5 13 - 18 11 31 33 5 1.209.2500.50 MAT0179495
M25 x 1.5 9 - 16 11 31 33 5 1.209.2500.51 MAT01712323 Larger quantities, small prices?
Offers tailored to your needs
M32 x 1.5 18 - 25 11 39 42 5 1.209.3200.50 MAT0179496 Offer service Fax: +49 2203 9649 222
M32 x 1.5 13 - 20 11 39 42 5 1.209.3200.51 MAT01712324
M40 x 1.5 22 - 32 13 48 53 5 1.209.4000.50 MAT0179497
M40 x 1.5 20 - 26 13 48 53 5 1.209.4000.51 MAT01712325
M50 x 1.5 32 - 38 13 49 60 5 1.209.5000.50 MAT0179498
M50 x 1.5 25 - 31 13 49 60 5 1.209.5000.51 MAT01712326
M63 x 1.5 37 - 44 14 49 65 / 68 5 1.209.6300.50 MAT0179499
M63 x 1.5 29 - 35 14 49 65 / 68 5 1.209.6300.51 MAT01712327

Larger quantities, small prices?
Offers tailored to your needs
Offer service Fax: +49 2203 9649 222

Cable diameter in mm
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

M12
M16
M20
M25
M32
M40
M50
M63 ASEAN2023 ASEAN2023
