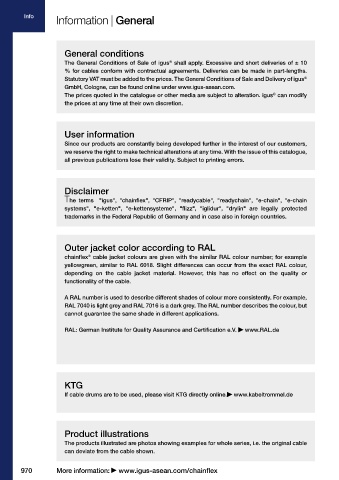

Information | General Information | General

General conditions Technical notes

The General Conditions of Sale of igus shall apply. Excessive and short deliveries of ± 10 The USB, FireWire and GigE cables listed on this page have been developed and manufactured
®
% for cables conform with contractual agreements. Deliveries can be made in part-lengths. for the mechanically demanding industrial application in e-chain systems . High resistance
®
Statutory VAT must be added to the prices. The General Conditions of Sale and Delivery of igus against oil and lubricants are guaranteed, and also a high protection against electro-magnetic
®
GmbH, Cologne, can be found online under www.igus-asean.com. interference fields. This high mechanical service life was reached with the usage of high
®
The prices quoted in the catalogue or other media are subject to alteration. igus can modify quality materials which even care for the electrical safeness.
the prices at any time at their own discretion. In single cases communication errors can occur, if very different hardware and software is
combined. We recommend tests with all components and the cables before starting serial
production, to get the proof for a perfectly running system.
Of course we support you with the details of these electrical tests.
User information

Since our products are constantly being developed further in the interest of our customers, The specifications in the catalogue referring to temperature range, bend radius and travel must
we reserve the right to make technical alterations at any time. With the issue of this catalogue, be seen as limiting value specifications. If two limiting value specifications are combined, this
all previous publications lose their validity. Subject to printing errors. can lead to a reduction of the cable's service life.

The term "oil-resistant" refers to a few selected oil types which have been tested accordingly.
This does not mean, however, that the products are automatically resistant to all the oils on
Disclaimer the market.
The terms "igus", "chainflex", "CFRIP", "readycable", "readychain", "e-chain", "e-chain
systems", "e-ketten", "e-kettensysteme", "flizz", "iglidur", "drylin" are legally protected Length printing: Respective printing of the metre length is already on many cables. These are
trademarks in the Federal Republic of Germany and in case also in foreign countries. not calibrated measurements, they are only intended as an orientation aid.
Just give us a call!

Outer jacket color according to RAL

chainflex cable jacket colours are given with the similar RAL colour number; for example
®
yellowgreen, similar to RAL 6018. Slight differences can occur from the exact RAL colour,
depending on the cable jacket material. However, this has no effect on the quality or
functionality of the cable.

A RAL number is used to describe different shades of colour more consistently. For example,
RAL 7040 is light grey and RAL 7016 is a dark grey. The RAL number describes the colour, but
cannot guarantee the same shade in different applications.

RAL: German Institute for Quality Assurance and Certification e.V. www.RAL.de

KTG

If cable drums are to be used, please visit KTG directly online. www.kabeltrommel.de

Product illustrations
The products illustrated are photos showing examples for whole series, i.e. the original cable
can deviate from the cable shown.

970 More information: www.igus-asean.com/chainflex Service life calculation, configuration and more information www.igus-asean.com/chainflex 971
