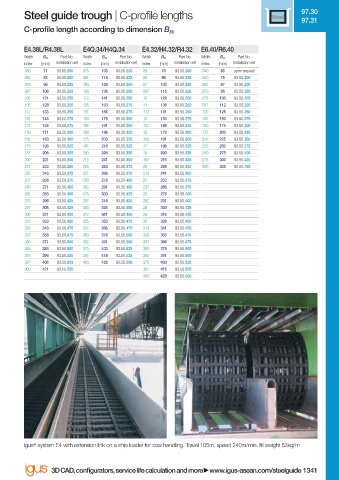

Steel guide trough | C-profi le lengths Steel 97.30
97.31
C-profile length according to dimension B Ri

E4.38L/R4.38L E4Q.34/H4Q.34 E4.32/H4.32/R4.32 E6.40/R6.40
Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. Width B Ri Part No.
index [mm] Installation set index [mm] Installation set index [mm] Installation set index [mm] Installation set
.050 71 93.50.200 075. 103 93.50.225 .05 78 93.50.200 .040 65 upon request
.062 83 93.50.200 087. 115 93.50.225 .06 96 93.50.225 .050 75 93.50.200
.075 96 93.50.225 100. 128 93.50.250 .07 103 93.50.225 .062 87 93.50.200
.087 108 93.50.225 108. 136 93.50.250 .087 115 93.50.225 .070 95 93.50.225
.100 121 93.50.250 112. 141 93.50.250 .10 128 93.50.250 .075 100 93.50.225
.105 126 93.50.250 125. 153 93.50.275 .11 136 93.50.250 .087 112 93.50.225
.112 133 93.50.250 137. 166 93.50.275 .112 141 93.50.250 .100 125 93.50.250
.125 146 93.50.275 150. 178 93.50.300 .12 153 93.50.275 .125 150 93.50.275
.137 158 93.50.275 162. 191 93.50.300 .137 166 93.50.275 .150 175 93.50.300
.150 171 93.50.300 168. 196 93.50.325 .15 178 93.50.300 .175 200 93.50.325
.162 183 93.50.300 175. 203 93.50.325 .162 191 93.50.300 .200 225 93.50.350
.175 196 93.50.325 187. 216 93.50.325 .17 196 93.50.325 .225 250 93.50.375
.187 208 93.50.325 200. 228 93.50.350 .18 203 93.50.325 .250 275 93.50.400
.200 221 93.50.350 212. 241 93.50.350 .187 216 93.50.325 .275 300 93.50.425
.212 233 93.50.350 225. 253 93.50.375 .20 228 93.50.350 .300 325 93.50.450
.225 246 93.50.375 237. 266 93.50.375 .212 241 93.50.350
.237 258 93.50.375 250. 278 93.50.400 .23 253 93.50.375
.250 271 93.50.400 262. 291 93.50.400 .237 266 93.50.375
.262 283 93.50.400 275. 303 93.50.425 .25 278 93.50.400
.275 296 93.50.425 287. 316 93.50.425 .262 291 93.50.400
.287 308 93.50.425 300. 328 93.50.450 .28 303 93.50.425
.300 321 93.50.450 312. 341 93.50.450 .29 316 93.50.425
.312 333 93.50.450 325. 353 93.50.475 .30 328 93.50.450
.325 346 93.50.475 337. 366 93.50.475 .312 341 93.50.450
.337 358 93.50.475 350. 378 93.50.500 .325 353 93.50.475
.350 371 93.50.500 362. 391 93.50.500 .337 366 93.50.475
.362 383 93.50.500 375. 403 93.50.525 .350 378 93.50.500
.375 396 93.50.525 387. 416 93.50.525 .362 391 93.50.500
.387 408 93.50.525 400. 428 93.50.550 .375 403 93.50.525
.400 421 93.50.550 .387 416 93.50.525
.400 428 93.50.550

igus ® system E4 with extension link on a ship loader for coal handling. Travel 105m, speed 240m/min, fi ll weight 53kg/m

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/steelguide 1341
