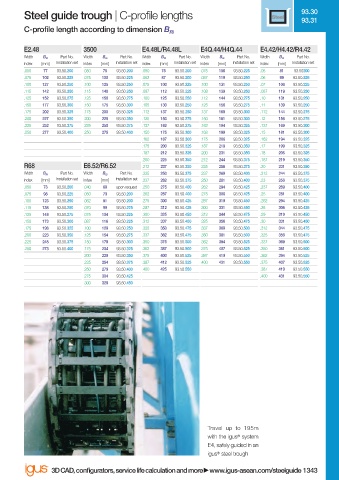

Steel guide trough | C-profi le lengths Steel 93.30
93.31
C-profile length according to dimension B Ri

E2.48 3500 E4.48L/R4.48L E4Q.44/H4Q.44 E4.42/H4.42/R4.42
Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. Width B Ri Part No. Width B Ri Part No.
index [mm] Installation set index [mm] Installation set index [mm] Installation set index [mm] Installation set index [mm] Installation set
.050 77 93.50.200 .050 75 93.50.200 .050 75 93.50.200 .075 106 93.50.225 .05 81 93.50200
.075 102 93.50.225 .075 100 93.50.225 .062 87 93.50.200 .087 119 93.50.250 .06 99 93.50.225
.100 127 93.50.250 .100 125 93.50.250 .075 100 93.50.225 .100 131 93.50.250 .07 106 93.50.225
.115 142 93.50.250 .115 140 93.50.250 .087 112 93.50.225 .108 139 93.50.250 .087 119 93.50.250
.125 152 93.50.275 .125 150 93.50.275 .100 125 93.50.250 .112 144 93.50.275 .10 131 93.50.250
.150 177 93.50.300 .150 175 93.50.300 .105 130 93.50.250 .125 156 93.50.275 .11 139 93.50.250
.175 202 93.50.325 .175 200 93.50.325 .112 137 93.50.250 .137 169 93.50.300 .112 144 93.50.275
.200 227 93.50.350 .200 225 93.50.350 .125 150 93.50.275 .150 181 93.50.300 .12 156 93.50.275
.225 252 93.50.375 .225 250 93.50.375 .137 162 93.50.275 .162 194 93.50.325 .137 169 93.50.300
.250 277 93.50.400 .250 275 93.50.400 .150 175 93.50.300 .168 199 93.50.325 .15 181 93.50.300
.162 187 93.50.300 .175 206 93.50.325 .162 194 93.50.325
.175 200 93.50.325 .187 219 93.50.350 .17 199 93.50.325
.187 212 93.50.325 .200 231 93.50.350 .18 206 93.50.325
.200 225 93.50.350 .212 244 93.50.375 .187 219 93.50.350
R68 E6.52/R6.52 .212 237 93.50.350 .225 256 93.50.375 .20 231 93.50.350
Width B Ri Part No. Width B Ri Part No. .225 250 93.50.375 .237 269 93.50.400 .212 244 93.50.375
index [mm] Installation set index [mm] Installation set .237 262 93.50.375 .250 281 93.50.400 .23 256 93.50.375
.050 73 93.50.200 .040 69 upon request .250 275 93.50.400 .262 294 93.50.425 .237 269 93.50.400
.075 98 93.50.225 .050 79 93.50.200 .262 287 93.50.400 .275 306 93.50.425 .25 281 93.50.400
.100 123 93.50.250 .062 91 93.50.200 .275 300 93.50.425 .287 319 93.50.450 .262 294 93.50.425
.115 138 93.50.250 .070 99 93.50.225 .287 312 93.50.425 .300 331 93.50.450 .28 306 93.50.425
.125 148 93.50.275 .075 104 93.50.225 .300 325 93.50.450 .312 344 93.50.475 .29 319 93.50.450
.150 173 93.50.300 .087 116 93.50.225 .312 337 93.50.450 .325 356 93.50.475 .30 331 93.50.450
.175 198 93.50.325 .100 129 93.50.250 .325 350 93.50.475 .337 369 93.50.500 .312 344 93.50.475
.200 223 93.50.350 .125 154 93.50.275 .337 362 93.50.475 .350 381 93.50.500 .325 356 93.50.475
.225 248 93.50.375 .150 179 93.50.300 .350 375 93.50.500 .362 394 93.50.525 .337 369 93.50.500
.250 273 93.50.400 .175 204 93.50.325 .362 387 93.50.500 .375 407 93.50.525 .350 381 93.50.500
.200 229 93.50.350 .375 400 93.50.525 .387 419 93.50.550 .362 394 93.50.525
.225 254 93.50.375 .387 412 93.50.525 .400 431 93.50.550 .375 407 93.50.525
.250 279 93.50.400 .400 425 93.50.550 .387 419 93.50.550
.275 304 93.50.425 .400 431 93.50.550
.300 329 93.50.450

Travel up to 195m
with the igus ® system
E4, safely guided in an
igus ® steel trough
3D CAD, confi gurators, service life calculation and more www.igus-asean.com/steelguide 1343
