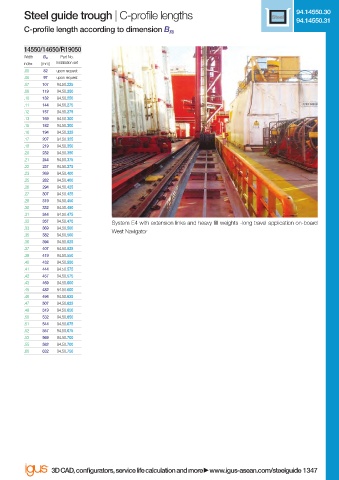

Steel guide trough | C-profi le lengths Steel 94.14550.30
94.14550.31
C-profile length according to dimension B Ri

14550/14650/R19050
Width B Ri Part No.
index [mm] Installation set
.05 82 upon request
.06 97 upon request
.07 107 94.50.225
.08 119 94.50.250
.10 132 94.50.250
.11 144 94.50.275
.12 157 94.50.275
.13 169 94.50.300
.15 182 94.50.300
.16 194 94.50.325
.17 207 94.50.325
.18 219 94.50.350
.20 232 94.50.350
.21 244 94.50.375
.22 257 94.50.375
.23 269 94.50.400
.25 282 94.50.400
.26 294 94.50.425
.27 307 94.50.425
.28 319 94.50.450
.30 332 94.50.450
.31 344 94.50.475
.32 357 94.50.475 System E4 with extension links and heavy fi ll weights -long travel application on-board
.33 369 94.50.500
West Navigator
.35 382 94.50.500
.36 394 94.50.525
.37 407 94.50.525
.38 419 94.50.550
.40 432 94.50.550
.41 444 94.50.575
.42 457 94.50.575
.43 469 94.50.600
.45 482 94.50.600
.46 494 94.50.625
.47 507 94.50.625
.48 519 94.50.650
.50 532 94.50.650
.51 544 94.50.675
.52 557 94.50.675
.53 569 94.50.700
.55 582 94.50.700
.60 632 94.50.750

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/steelguide 1347
