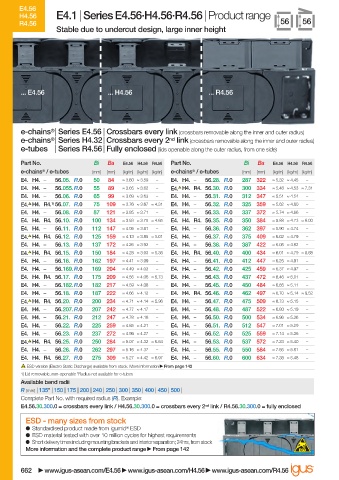

P. 664

E4.56
                       H4.56    E4.1 | Series E4.56·H4.56·R4.56 | Product range
                       R4.56                                                            56    56
                                Stable due to undercut design, large inner height








                       ... E4.56             ... H4.56                ... R4.56




                               ®
                       e-chains  | Series E4.56 | Crossbars every link (crossbars removable along the inner and outer radius)
                                                             nd
                               ®
                       e-chains  | Series H4.32 | Crossbars every 2  link (crossbars removable along the inner and outer radius)
                       e-tubes  | Series R4.56 | Fully enclosed (lids openable along the outer radius, from one side)
                       Part No.           Bi  Ba  E4.56  H4.56 R4.56  Part No.  Bi  Ba  E4.56  H4.56 R4.56
                       e-chains ®  / e-tubes  [mm]  [mm]  [kg/m] [kg/m] [kg/m]  e-chains ®  / e-tubes  [mm]  [mm]  [kg/m] [kg/m] [kg/m]
                       E4. H4. –  56.05. R.0  50  84  ≈ 3.60 ≈ 3.59  –  E4. H4. –  56.28. R.0  287 322  ≈ 5.32 ≈ 4.45  –
                       E4. H4. –  56.055.R.0  55  89  ≈ 3.65 ≈ 3.62  –  E4. H4. R4. 56.30. R.0  300 334  ≈ 5.48 ≈ 4.53 ≈ 7.31
                       E4. H4. –  56.06. R.0  65  99  ≈ 3.69 ≈ 3.63  –  E4. H4. –  56.31. R.0  312 347  ≈ 5.51 ≈ 4.54  –
                       E4. H4. R4. 1) 56.07. R.0  75  109  ≈ 3.76 ≈ 3.67 ≈ 4.31  E4. H4. –  56.32. R.0  325 359  ≈ 5.62 ≈ 4.60  –
                       E4. H4. –  56.08. R.0  87  121  ≈ 3.85 ≈ 3.71  –  E4. H4. –  56.33. R.0  337 372  ≈ 5.74 ≈ 4.66  –
                       E4. H4. R4. 56.10. R.0  100 134  ≈ 3.93 ≈ 3.75 ≈ 4.65  E4. H4. R4. 56.35. R.0  350 384  ≈ 5.88 ≈ 4.73 ≈ 8.00
                       E4. H4. –  56.11. R.0  112 147  ≈ 4.05 ≈ 3.81  –  E4. H4. –  56.36. R.0  362 397  ≈ 5.90 ≈ 4.74  –
                       E4. H4. R4. 56.12. R.0  125 159  ≈ 4.13 ≈ 3.85 ≈ 5.01  E4. H4. –  56.37. R.0  375 409  ≈ 6.02 ≈ 4.79  –
                       E4. H4. –  56.13. R.0  137 172  ≈ 4.26 ≈ 3.92  –  E4. H4. –  56.38. R.0  387 422  ≈ 6.06 ≈ 4.82  –
                       E4. H4. R4. 56.15. R.0  150 184  ≈ 4.28 ≈ 3.93 ≈ 5.36  E4. H4. R4. 56.40. R.0  400 434  ≈ 6.01 ≈ 4.79 ≈ 8.68
                       E4. H4. –  56.16. R.0  162 197  ≈ 4.41 ≈ 3.99  –  E4. H4. –  56.41. R.0  412 447  ≈ 6.25 ≈ 4.91  –
                       E4. H4. –  56.169.R.0  169 204  ≈ 4.49 ≈ 4.03  –  E4. H4. –  56.42. R.0  425 459  ≈ 6.37 ≈ 4.97  –
                       E4. H4. R4. 56.17. R.0  175 209  ≈ 4.55 ≈ 4.06 ≈ 5.73  E4. H4. –  56.43. R.0   437 472  ≈ 6.46 ≈ 5.01  –
                       E4. H4. –  56.182.R.0  182 217  ≈ 4.59 ≈ 4.08  –  E4. H4. –  56.45. R.0  450 484  ≈ 6.65 ≈ 5.11  –
                       E4. H4. –  56.18. R.0  187 222  ≈ 4.66 ≈ 4.12  –  E4. H4. R4. 56.46. R.0   462 497  ≈ 6.70 ≈ 5.14 ≈ 9.52
                       E4. H4. R4. 56.20. R.0  200 234  ≈ 4.71 ≈ 4.14 ≈ 5.96  E4. H4. –  56.47. R.0  475 509  ≈ 6.73 ≈ 5.15  –
                       E4. H4. –  56.207.R.0  207 242  ≈ 4.77 ≈ 4.17  –  E4. H4. –  56.48. R.0  487 522  ≈ 6.80 ≈ 5.19  –
                       E4. H4. –  56.21. R.0  212 247  ≈ 4.78 ≈ 4.18  –  E4. H4. –  56.50.  R.0  500 534  ≈ 6.96 ≈ 5.26  –
                       E4. H4. –  56.22. R.0  225 259  ≈ 4.85 ≈ 4.21  –  E4. H4. –  56.51. R.0   512 547  ≈ 7.01 ≈ 5.29  –
                       E4. H4. –  56.23. R.0  237 272  ≈ 4.96 ≈ 4.27  –  E4. H4. –  56.52. R.0  525 559  ≈ 7.14 ≈ 5.36  –
                       E4. H4. R4. 56.25. R.0  250 284  ≈ 5.07 ≈ 4.32 ≈ 6.64  E4. H4. –  56.53. R.0  537 572  ≈ 7.23 ≈ 5.40  –
                       E4. H4. –  56.26. R.0  262 297  ≈ 5.16 ≈ 4.37  –  E4. H4. –  56.55.  R.0  550 584  ≈ 7.65 ≈ 5.61  –
                       E4. H4. R4. 56.27. R.0  275 309  ≈ 5.27 ≈ 4.42 ≈ 6.97  E4. H4. –  56.60. R.0   600 634  ≈ 7.38 ≈ 5.48  –
                          ESD version (Electro Static Discharge) available from stock. More information   From page 142
                       1) Lid removable, non-openable *Radius not available for e-tubes
                       Available bend radii
                       R [mm] | 135* | 150 | 175 | 200 | 240 | 250 | 300 | 350 | 400 | 450 | 500 |
                       Complete Part No. with required radius (R). Example:
                       E4.56.30.300.0 = crossbars every link / H4.56.30.300.0 = crossbars every 2 nd  link / R4.56.30.300.0 = fully enclosed
                         ESD - many sizes from stock
                         ●  Standardised product made from igumid ®  ESD
                         ●  ESD material tested with over 10 million cycles for highest requirements
                            ● Short delivery times including mounting brackets and interior separation; 24hrs, from stock
                         More information and the complete product range   From page 142

                       662    www.igus-asean.com/E4.56   www.igus-asean.com/H4.56   www.igus-asean.com/R4.56
