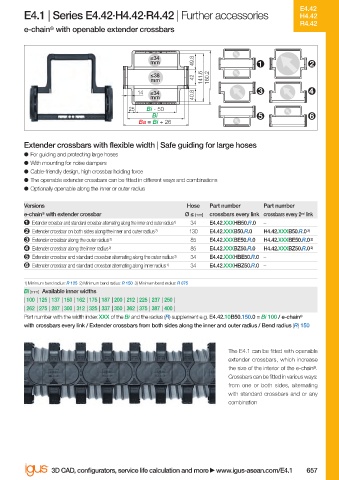

P. 659

E4.42
                        E4.1 | Series E4.42·H4.42·R4.42 | Further accessories                H4.42
                                                                                             R4.42
                        e-chain  with openable extender crossbars
                               ®


                                                        ≤34
                                                        mm         49.8
                                                        ≤38        42  141.6  160.2
                                                        mm
                                                     14  ≤34       40.8
                                                        mm
                                                  25   Bi - 50
                                                        Bi
                                                     Ba = Bi + 26

                        Extender crossbars with flexible width | Safe guiding for large hoses
                        ●  For guiding and protecting large hoses
                        ●  With mounting for noise dampers
                        ●  Cable-friendly design, high crossbar holding force
                        ●  The openable extender crossbars can be fi tted in diff erent ways and combinations
                        ●  Optionally openable along the inner or outer radius

                        Versions                                 Hose  Part number  Part number
                        e-chain ®  with extender crossbar        Ø ≤ [mm]  crossbars every link crossbars every 2 nd  link
                          Extender crossbar and standard crossbar alternating along the inner and outer radius  1)  34  E4.42.XXXHB50.R.0  –
                          Extender crossbar on both sides along the inner and outer radius  2)  130  E4.42.XXXB50.R.0  H4.42.XXXB50.R.0  2)
                          Extender crossbar along the outer radius  3)  85  E4.42.XXXBE50.R.0  H4.42.XXXBE50.R.0  2)
                          Extender crossbar along the inner radius  2)  85  E4.42.XXXBZ50.R.0  H4.42.XXXBZ50.R.0  2)
                          Extender crossbar and standard crossbar alternating along the outer radius  3)  34  E4.42.XXXHBE50.R.0 –
                          Extender crossbar and standard crossbar alternating along inner radius  1)  34  E4.42.XXXHBZ50.R.0 –

                        1) Minimum bend radius: R 125  2) Minimum bend radius: R 150  3) Minimum bend radius: R 075
                        Bi [mm] Available inner widths
                        | 100   | 125   | 137   | 150   | 162   | 175   | 187   | 200   | 212   | 225   | 237   | 250   |
                        | 262   | 275   | 287   | 300   | 312   | 325   | 337   | 350   | 362   | 375   | 387   | 400   |
                        Part number with the width index XXX of the Bi and the radius (R) supplement e.g. E4.42.10B50.150.0 = Bi 100 / e-chain ®
                        with crossbars every link / Extender crossbars from both sides along the inner and outer radius / Bend radius (R) 150


                                                                           The E4.1 can be fi tted with openable
                                                                           extender crossbars, which increase
                                                                           the size of the interior of the e-chain ® .
                                                                           Crossbars can be fi tted in various ways:
                                                                           from one or both sides, alternating
                                                                           with standard crossbars and or any
                                                                           combination








                               3D CAD, confi gurators, service life calculation and more   www.igus-asean.com/E4.1  657
