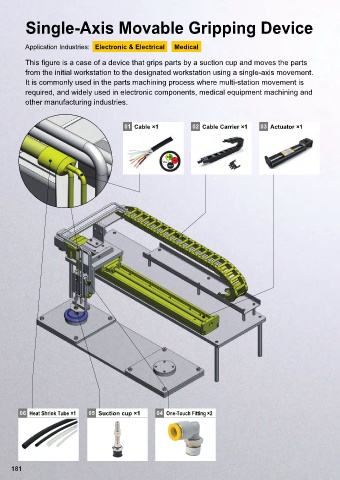

Single-Axis Movable Gripping Device

Application Industries: Electronic & Electrical Medical

This figure is a case of a device that grips parts by a suction cup and moves the parts
from the initial workstation to the designated workstation using a single-axis movement.
It is commonly used in the parts machining process where multi-station movement is
required, and widely used in electronic components, medical equipment machining and
other manufacturing industries.

01 Cable ×1 02 Cable Carrier ×1 03 Actuator ×1

Yellow/Green
Red
White
Black

06 Heat Shrink Tube ×1 05 Suction cup ×1 04 One-Touch Fitting ×2
