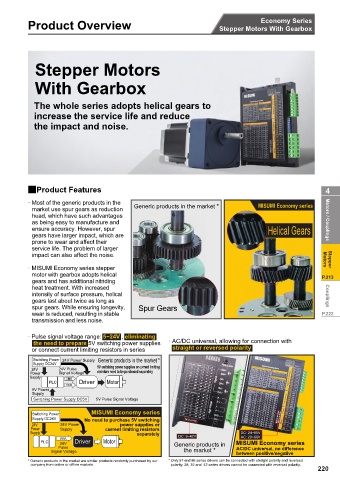

Page 223 - MiSUMi FA Mechanical Components Economy Series

Economy Series
Product Overview Stepper Motors With Gearbox

Stepper Motors

With Gearbox

The whole series adopts helical gears to helical gears to
increase the service life and reduce nd reduceeee
the impact and noise.

2Product Features 4

· Most of the generic products in the Generic products in the market * MISUMI Economy series
market use spur gears as reduction
head, which have such advantages
as being easy to manufacture and Motors / Couplings
ensure accuracy. However, spur Helical Gears
gears have larger impact, which are
prone to wear and affect their
service life. The problem of larger
impact can also affect the noise. Motors Stepper
· MISUMI Economy series stepper
motor with gearbox adopts helical P.213
gears and has additional nitriding
heat treatment. With increased
intensity of surface pressure, helical Couplings
gears last about twice as long as
spur gears. While ensuring longevity, Spur Gears
wear is reduced, resulting in stable P.222
transmission and less noise.

· Pulse signal voltage range: 5~24V , eliminating
the need to prepare 5V switching power supplies · AC/DC universal, allowing for connection with
or connect current limiting resistors in series straight or reversed polarity
Switching Power 24V Power Supply Generic products in the market *
Supply DC24V
24V 24V Pulse 5V switching power supplies or current limiting
Power Signal Voltage resistors need to be purchased separately
Supply
PLC Driver Motor
5V Power
Supply
Switching Power Supply DC5V 5V Pulse Signal Voltage
Switching Power MISUMI Economy series
Supply DC24V No need to purchase 5V switching
24V 24V Power power supplies or
Power Supply current limiting resistors
Supply separately DC: 24~80V
DC: 9~42V AC: 20~60V
PLC 24V Driver Motor Generic products in MISUMI Economy series
Pulse
Signal Voltage the market * AC/DC universal, no difference
between positive/negative
* Generic products in the market are similar products randomly purchased by our * Only 57 and 86 series drivers can be connected with straight polarity and reversed
company from online or offline markets. polarity; 28, 35 and 42 series drivers cannot be connected with reversed polarity.
