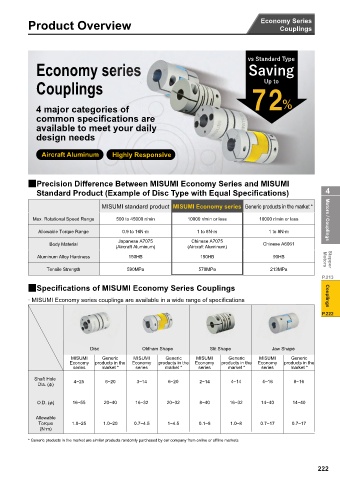

Page 225 - MiSUMi FA Mechanical Components Economy Series

Product Overview Economy Series
Couplings

YV 6WDQGDUG 7\SH
Economy series 6DYLQJ

Couplings 8S WR

ᵕᵐ
4 major categories of
common specifications are
available to meet your daily
design needs

Aircraft Aluminum Highly Responsive

2Precision Difference Between MISUMI Economy Series and MISUMI
Standard Product (Example of Disc Type with Equal Specifications) 4 4

MISUMI standard product MISUMI Economy series Generic products in the market *
Max. Rotational Speed Range 500 to 45000 r/min 10000 r/min or less 10000 r/min or less Motors / Couplings
Allowable Torque Range 0.9 to 16N·m 1 to 8N·m 1 to 8N·m
Japanese A7075 Chinese A7075
Body Material Chinese A6061
(Aircraft Aluminum) (Aircraft Aluminum)
Aluminum Alloy Hardness 150HB 150HB 90HB Motors Stepper

Tensile Strength 590MPa 570MPa 213MPa
P.213
2Specifications of MISUMI Economy Series Couplings
· MISUMI Economy series couplings are available in a wide range of specifications Couplings

P.222

Discisc Oldham Shape Slit Shape Jaw Shapepe
D
MISUMI Generic MISUMI Generic MISUMI Generic MISUMI Generic
Economy products in the Economy products in the Economy products in the Economy products in the
series market * series market * series market * series market *
Shaft Hole 4~25 6~20 3~14 6~20 2~14 4~14 4~16 8~16
Dia. (П)

O.D. (П) 16~55 20~40 16~32 20~32 8~40 16~32 14~40 14~40

Allowable
Torque 1.0~25 1.0~20 0.7~4.5 1~4.5 0.1~8 1.0~8 0.7~17 0.7~17
(N·m)
* Generic products in the market are similar products randomly purchased by our company from online or offline markets
