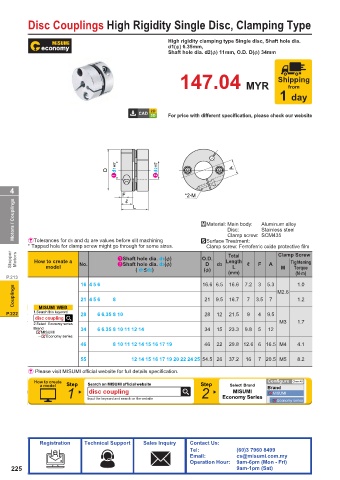

Page 228 - MiSUMi FA Mechanical Components Economy Series

Disc Couplings High Rigidity Single Disc, Clamping Type

High rigidity clamping type Single disc, Shaft hole dia.
d1(П) 6.35mm,
Shaft hole dia. d2(П) 11mm, O.D. D(П) 34mm

Shipping
147.04 MYR from
1 day

For price with different specification, please check our website

d1H7 d2H7
D A

4
F M L *2-M
Motors / Couplings .Material: Main body: Aluminum alloy

Stainless steel
Disc:
Clamp screw: SCM435
&Tolerances for d1 and d2 are values before slit machining
* Tapped hole for clamp screw might go through for some sizes. 4 Surface Treatment:
Clamp screw: Ferroferric oxide protective fi lm
Stepper Motors How to create a No. Shaft hole dia. d1(П) O.D. d3 Length ℓ F A Clamp Screw
Total
Tightening
Shaft hole dia. d2(П)
D
model
( d1≤d2) (П) L M Torque
(mm) (N·m)
P.213
16 4 5 6 16.6 6.5 16.6 7.2 3 5.3 1.0
Couplings 21 4 5 6 8 21 9.5 16.7 7 3.5 7 M2.6 1.2
MISUMI WEB
P.222 1.Search this keyword 28 6 6.35 8 10 28 12 21.5 9 4 9.5
disc coupling
2.Select Economy series M3 1.7
Brand 34 6 6.35 8 10 11 12 14 34 15 23.3 9.8 5 12
MISUMI
Economy series
46 8 1011121415161719 46 22 29.8 12.6 6 16.5 M4 4.1
55 12 14 15 16 17 19 20 22 24 25 54.5 26 37.2 16 7 20.5 M5 8.2
& Please visit MISUMI offi cial website for full details specifi cation.
How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 disc coupling 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
