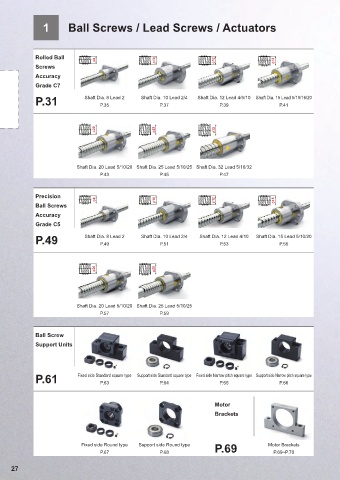

P. 30

1      Ball Screws / Lead Screws / Actuators




             Rolled Ball
                                П8                П10               П12               П15
             Screws
             Accuracy
             Grade C7
             P.31           Shaft Dia. 8 Lead 2  Shaft Dia. 10 Lead 2/4  Shaft Dia. 12 Lead 4/5/10  Shaft Dia. 15 Lead 5/10/16/20
                                                                                        P.41
                                 P.35
                                                                     P.39
                                                   P.37
                                П20               П25               П32





                          Shaft Dia. 20 Lead 5/10/20 Shaft Dia. 25 Lead 5/10/25 Shaft Dia. 32 Lead 5/10/32
                                 P.43              P.45              P.47


             Precision
                                П8                П10               П12               П15
             Ball Screws
             Accuracy
             Grade C5
             P.49           Shaft Dia. 8 Lead 2  Shaft Dia. 10 Lead 2/4  Shaft Dia. 12 Lead 4/10  Shaft Dia. 15 Lead 5/10/20
                                                                                        P.55
                                                                     P.53
                                                   P.51
                                 P.49
                                П20               П25





                          Shaft Dia. 20 Lead 5/10/20 Shaft Dia. 25 Lead 5/10/25
                                 P.57              P.59


             Ball Screw
             Support Units




             P.61         Fixed side Standard square type  Support side Standard square type  Fixed side Narrow pitch square type Support side Narrow pitch square type
                                                                     P.65
                                                                                        P.66
                                 P.63
                                                   P.64
                                                                    Motor
                                                                    Brackets




                           Fixed side Round type  Support side Round type  P.69     Motor Brackets
                                 P.67              P.68                               P.69~P.70
