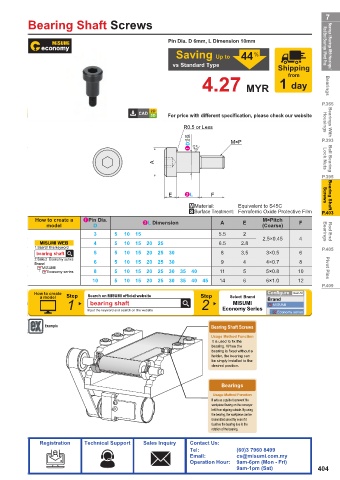

Page 407 - MiSUMi FA Mechanical Components Economy Series

7
Bearing Shaft Screws

Pin Dia. D 6mm, L Dimension 10mm Rod End Bearings / Pivot Pins Bearings / Bearings With Housings /
44 %
Saving Up to
vs Standard Type Shipping
from
4.27 MYR 1 day Bearings

P.365
For price with different specification, please check our website

R0.5 or Less Housings Bearings With
D -0.01 -0.05 12.5 M×P P.393

A Lock Nuts Ball Bearing
P.395

E L F Screws Bearing Shaft

.Material: Equivalent to S45C
4Surface Treatment: Ferroferric Oxide Protective Film P.403
How to create a Pin Dia. L Dimension A E M×Pitch F
model D (Coarse)
3 5 10 15 5.5 2 Bearings Rod End
2.5×0.45 4
MISUMI WEB 4 5 10 15 20 25 6.5 2.8
1.Search this keyword P.405
bearing shaft 5 5 10 15 20 25 30 8 3.5 3×0.5 6
2.Select Economy series
Brand 6 5 10 15 20 25 30 9 4 4×0.7 8
MISUMI Pivot Pins
Economy series 8 5 10 15 20 25 30 35 40 11 5 5×0.8 10
10 5 10 15 20 25 30 35 40 45 14 6 6×1.0 12
P.409
How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 bearing shaft 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
Example Bearing Shaft Screws
Usage Method Function
It is used to fix the
bearing. When the
bearing is fixed without a
holder, the bearing can
be simply installed to the
desired position.

Bearings
Usage Method Function
It acts as a guide to prevent the
workpiece flowing on the conveyor
belt from slipping outside. By using
the bearing, the workpiece can be
transmitted smoothly even if it
touches the bearing due to the
rotation of the bearing.
