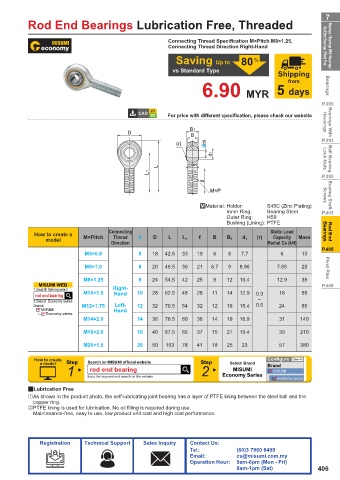

Page 409 - MiSUMi FA Mechanical Components Economy Series

7
Rod End Bearings Lubrication Free, Threaded

Connecting Thread Specifi cation M×Pitch M8×1.25,
Connecting Thread Direction Right-Hand Rod End Bearings / Pivot Pins Bearings / Bearings With Housings /

Saving Up to 80 %
vs Standard Type
Shipping
from Bearings
6.90 MYR 5 days
P.365
For price with different specification, please check our website Housings

B1 Bearings With
D
B
P.393
(r) dH8
d1 Lock Nuts Ball Bearing
L
L1
P.395
M
M×P Screws Bearing Shaft

.Material: Holder: S45C (Zinc Plating)
Inner Ring: Bearing Steel P.403
Outer Ring: H59
Bushing (Lining): PTFE
Connecting Static Load Bearings Rod End
How to create a M×Pitch Thread d D L ℓ B (r) Capacity Mass
model L 1 B 1 d 1
Direction Radial Cs (kN)
P.405
M5×0.8 5 18 42.5 33 19 6 8 7.7 6 13
M6×1.0 6 20 46.5 36 21 6.7 9 8.96 7.65 20 Pivot Pins

M8×1.25 8 24 54.5 42 25 9 12 10.4 12.9 38
MISUMI WEB P.409
1.Search this keyword Right-
rod end bearing M10×1.5 Hand 10 28 62.5 48 28 11 14 12.9 0.3 18 55
2.Select Economy series ~
Brand M12×1.75 Left- 12 32 70.5 54 32 12 16 15.4 0.5 24 85
MISUMI Hand
Economy series
M14×2.0 14 36 78.5 60 36 14 19 16.9 31 140
M16×2.0 16 40 87.5 66 37 15 21 19.4 39 210
M20×1.5 20 50 103 78 41 18 25 23 57 380

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 rod end bearing 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
2Lubrication Free
As shown in the product photo, the self-lubricating joint bearing has a layer of PTFE lining between the steel ball and the
copper ring.
PTFE lining is used for lubrication. No oil fi lling is required during use.
Maintenance-free, easy to use, low product unit cost and high cost performance.
